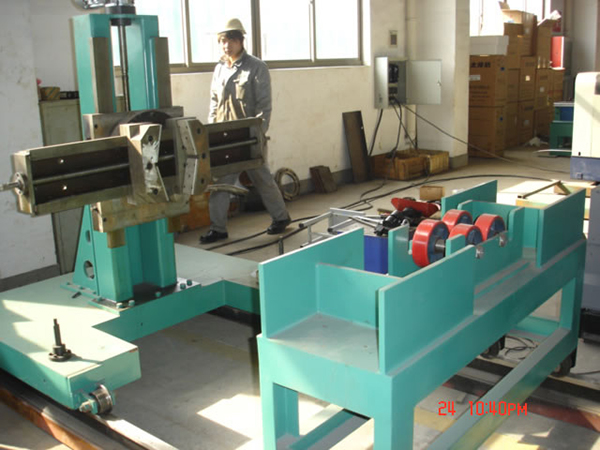

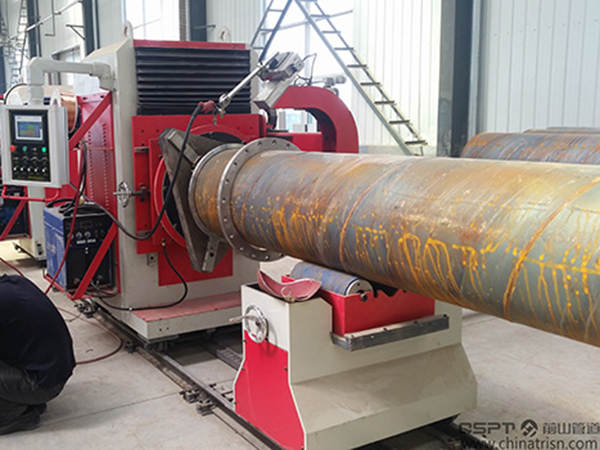

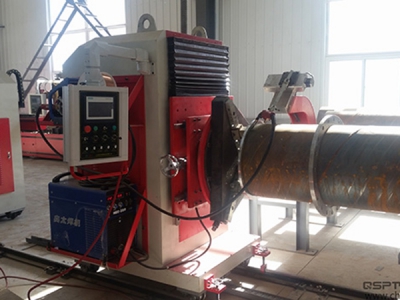

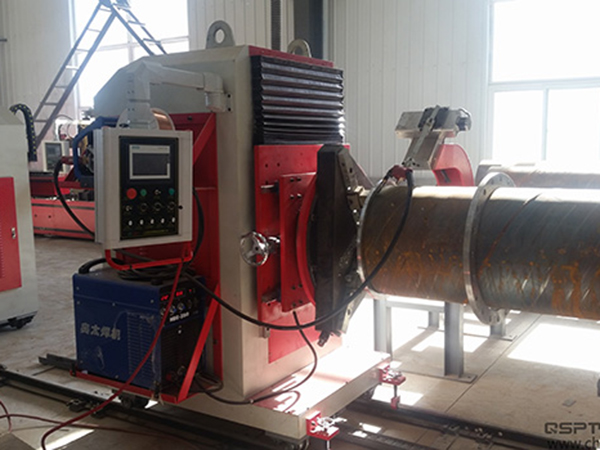

Slip-On Flange and Pipe Fast Fitting-Up Machine
Model: SFFUM-16Aa/24Aa/32Aa/48Aa/64Aa
Technical Parameters- Pipe Diameter Applicable: DN400/DN600/DN800/DN1200/DN1600
- The Longest Pipe: 6M (or depending on the situation)
- Fitting-up System: 1set/2 sets
- Moving Up/Down: With screw lifter, driven electrically
- Clamping System: Screw, driven manually
- Lengthwise Moving: Linear guiding rail, driven and movement electrically(motorized)
- Max Loading Capability: 500KG/1000KGS
- Bracket System: 2 sets
- Max Loading Capability: 2,500KG
- Lengthwise Moving: Manually driving
- Track System: 1 set
- Track Length: 7.5M (or depend on the situation)
- Track Type: Square-steel track
Applications
The slip-on flange and pipe fast fitting-up machine is used for standard wall thickness piping.
- The slip-on flange and pipe fast fitting-up machine offers fit-up and tack welding of the straight pipe with flange directly.
- The machine increases the efficiency and quality of pipe-flange fit-up, requiring fewer skills for fitting-up pipes and flanges and reducing work difficulty for the operators.

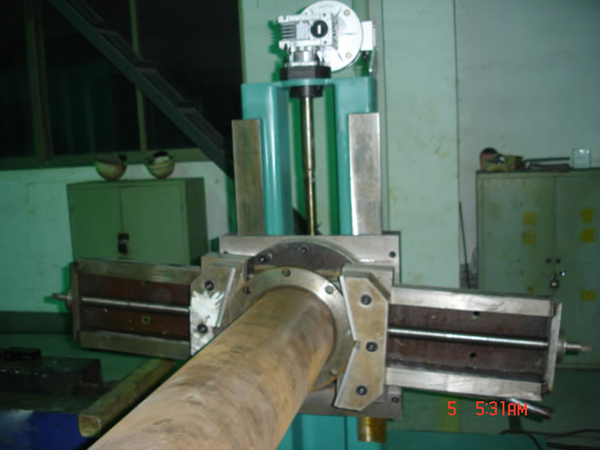

- Specialized for fitting up slip-on flange with pipe; clamping the outside of workpieces with 3-jaw chuck; rotating on slewing bearing; moving up/down/left/right with electric motor; double supporting traveling trolleys; operated by aluminum alloy control box. 10 times efficiency; first in the industry; Pipe - flange fit up expert (dedicated machine); All-rounder with high precision.
As a China-based slip-on flange and pipe fast fitting-up machine manufacturer, we also supply piping fabrication fast fitting-up machine, high speed pipe cutting and beveling machine, pipe automatic welding machine, pipe fabrication production line, and much more.
