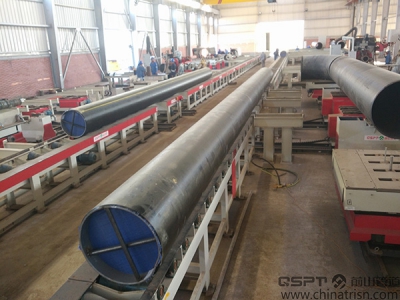

The longitudinal pipe automatic conveying system conveys the pipe automatically or manually between work stages and workstations and the pipe can be removed from the machine with a turning mechanism if necessary.

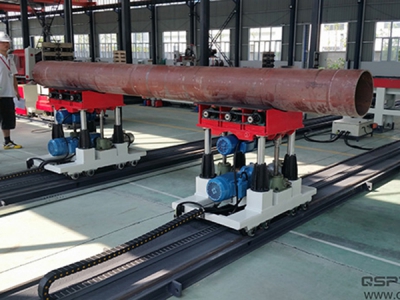

Patented product; achieving lateral conveying quickly, smoothly and securely, able to replace the turnover mechanism; two or three conveying trolleys equipped with single screw and single guiding rod; 18# light rails; electric lifting and moving; VF stepless speed control; manual control on console (wireless remote control for option).

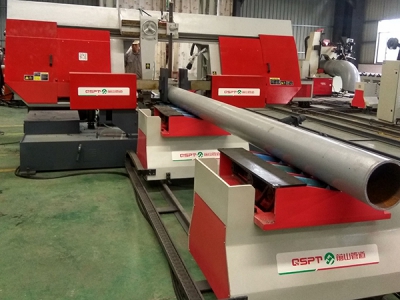

Specially designed conveying system for Pipe Cutting Band Saw Machine; V type polyurethane rollers same as the internal conveying of the pipe cutting band saw machine to ensure the alignment of pipes in all directions; VF stepless speed control, manual control on console (wireless remote control for option).

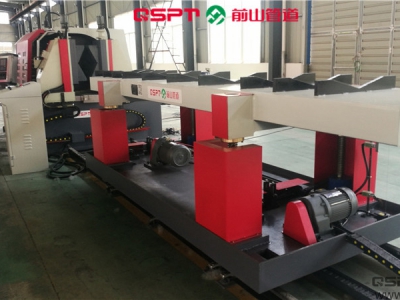

The pipe conveying system for end beveling machine conveys the pipe automatically or manually when the end beveling machine works and the pipe can be removed from the machine with a turnover mechanism if necessary.
Lifting System: A lifting system could be equipped if required to adjust the center elevation of pipes automatically and to bevel pipes of different diameters. Turning System: A turning system is equipped to turn pipes automatically and to bevel the two end of pipe(option).
Pipe Diameter Applicable: DN50~600(φ60~610); Conveying Length: Feed in end ≥1,000MM; feed out end ≥500MM; Line Length: 7.5M at feed in end and 7.5M at feed out end (or depending on situation).
The pipe prefabrication conveying system conveys the pipe or spool piece automatically between each work stage and workstation and the pipe can be removed from the machine with a turnover mechanism if necessary. It increases the automatization level in the pipe fabricating plant and decreases the hazards during hoisting.
