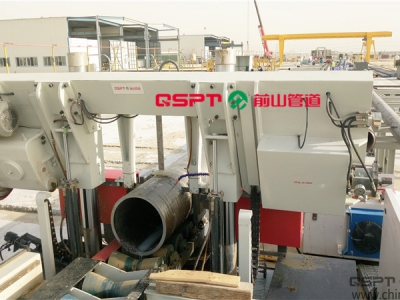

Rear mounted single pair clamp system; two-side synchronous clamping with hydraulic cylinders; built-in V-type roller centering conveying; VF stepless cutting speed control system; Auto cutting of single section of pipe after aligned with laser.

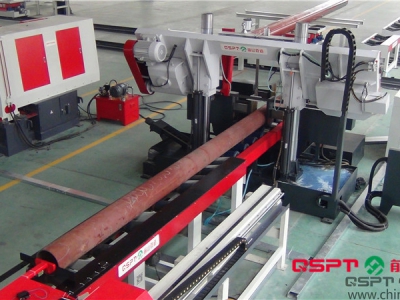

Front mounted two clamping mechanism; servo motor + ball bearing screw length measuring system, two-side synchronous clamping with hydraulic cylinders; built-in V-type roller centering conveying; VF stepless cutting speed control system...
Flame/Plasma Cutting; built-in motor roller conveying system; the roller-bench type structure with three rows of small wheels coated with stainless steel or two rows of big wheels coated with stainless. Driving by Servo motor + Reducer; control with PLC cutting system; CNC cutting to length controlled by man-machine interface.
The pipe plasma beveling and cutting machine offers good on-line performance (designed as per the on-line equipment of the production line). It offers a beveling speed of ≤2Min/pipe bevel (DN200 SCH40).
Conveying System: Built in a conveying system equipped with a lifter; additionally, one set of conveying system can be provided for bevel cutting machine if necessary and conveying can be implemented manually or electrically.
The CNC pipe profile cutting machine mainly consists of the control system, machine arm system, driving unit, clamp unit, support unit, guide rail, airway system, control cabinet and operation table, etc. One set of flame cutting system (including plasma cutting) is provided as the main cutting system (or as per customer's request).
The magnetic pipe flame cutting and beveling machine has a beveling speed of ≤5Min/pipe bevel (DN200, carbon steel pipe with standard wall thickness). It has bevel cutting of: cutting pipe and one bevel simultaneously.
