Pipe Fabrication Shop Planning and Design

Model: QSPT FL&DS V1.0

We can offer pipe fabrication shop planning and design service to assist pipe fabrication factories in improving automatic degree, thus increasing their monthly or annual production capacity to meet market demands, making the mobility of pipe fabrication equipment meet related requirements, and maximally saving the pipe fabrication equipment purchasing cost.

Details Illustration
We can offer integrated planning on the pipe fabrication plant and put forward planning and design scheme. Finally, we will design the construction details according to the scheme. Following is a detailed list of the pipe fabrication shop planning and design services we can offer.

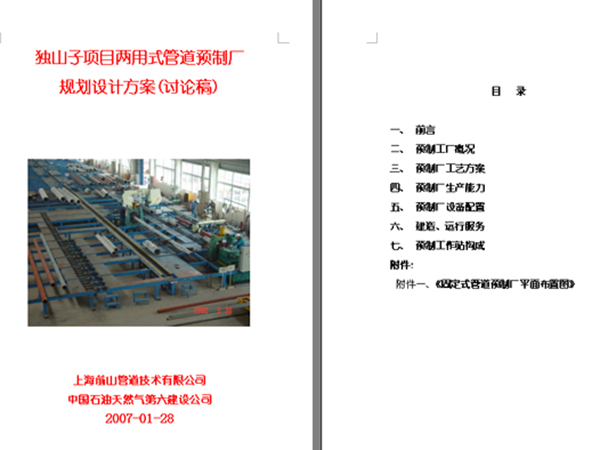

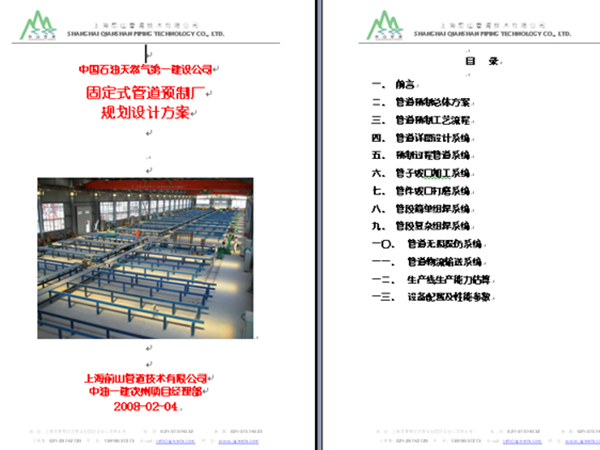

1. The pipe fabrication shop planning and design scheme

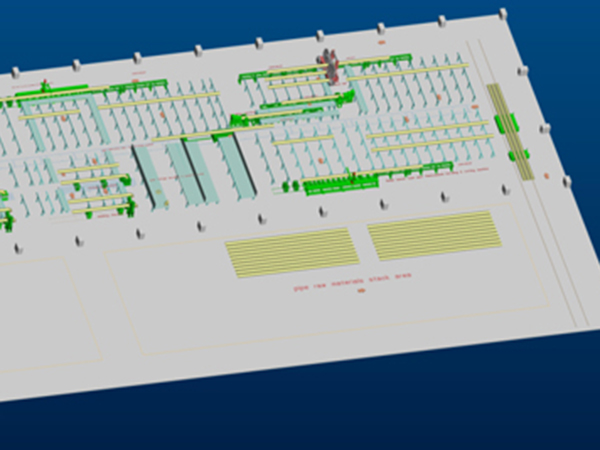

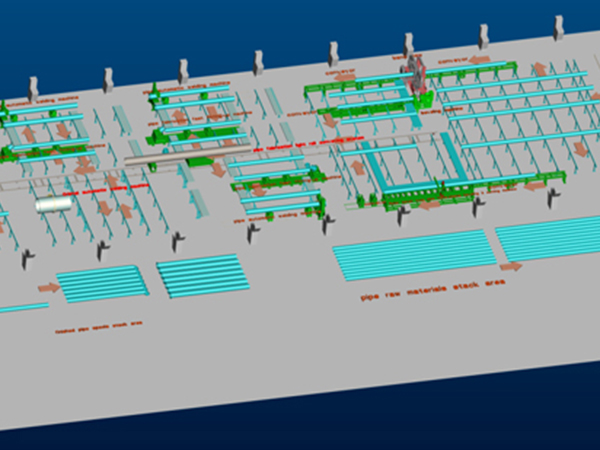

2. General arrangement plan for the fixed type pipe fabrication shop
3. Underground casing pipe construction drawing for the shop
4. Supporting rack construction drawing for the shop
5. Lighting layout plan for the shop
6. Motive power layout plan for the shop
7. Equipment installation position drawing for the shop
