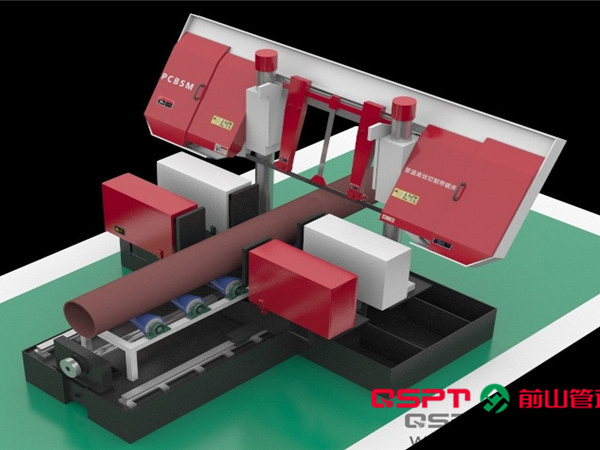

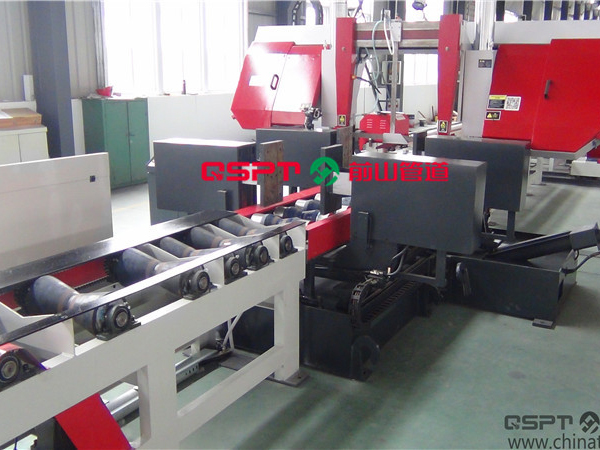

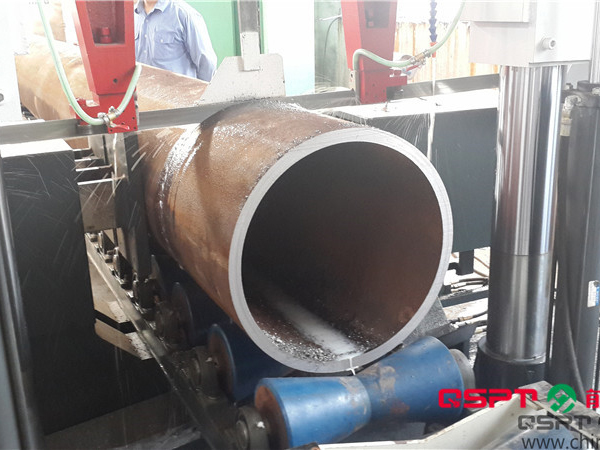

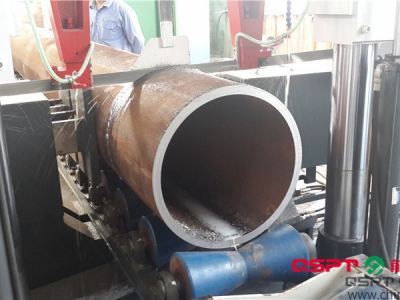

Numerical Control Pipe Cutting Band Saw Machine
- Structure: Horizontal, with one main column+one auxiliary column
- Pipe Diameter Applicable: DN400/DN600/DN800/DN1000/DN1200/DN1500
- Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
- Feeding Speed: Stepless speed adjustment
- Clamping Mode: Both sides centering clamping automatically by hydraulic cylinder
- Band Saw Tension: Tensioning and loosen automatically by hydraulic
- Cooling System: Built in coolant pump
- Speed of the Band Saw: 17-85m/min speed control by frequency variation
- Size of the Band Saw: 7400*54*1.6; 8050*67*1.6mm
- Dimension of Machine: 3750*2300*210mm; 3925*1660*2320mm
- Weight of Machine: 5000KGS;7500KGS (±5%)
- Length-Measuring System: A mechanical length-measuring system can be provided to automatically measure the length of the pipes as well as cut them with the supporting of the band saw conveying system
- Measuring Length: 1m/once
- Control System: PLC Controlling
- Conveying System: Cutting and beveling VF band saw conveying systems driven by motor are equipped if necessary
The numerical control pipe cutting band saw machine is used for projects with a majority of heavy wall thickness and standard wall thickness pipes.
- The numerical control pipe cutting band saw machine offers good on-line performance (designed as per the on-line equipment of the production line).
- It offers a cutting efficiency of ≤2Min /pipeline bevel (DN200 SCH80).
- The numerical control pipe cutting band saw machine has good opening quality.
- Front mounted two clamping mechanism; servo motor + ball bearing screw length measuring system, two-side synchronous clamping with hydraulic cylinders; built-in V-type roller centering conveying; VF stepless cutting speed control system; continuous automatic cutting of multiple sections of pipes after presetting data through man-machine interface.
Qianshan is a numerical control pipe cutting band saw machine manufacturer based in China. Our company also offers pipe plasma beveling and cutting machine, pipe automatic welding machine, piping fabrication fast fitting-up machine, pipe fabrication production line, and much more.
