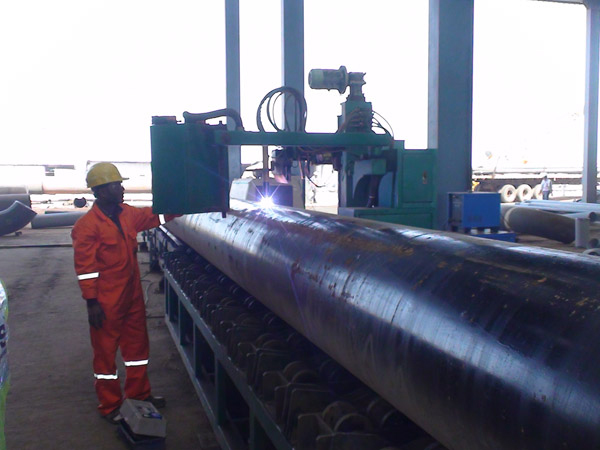

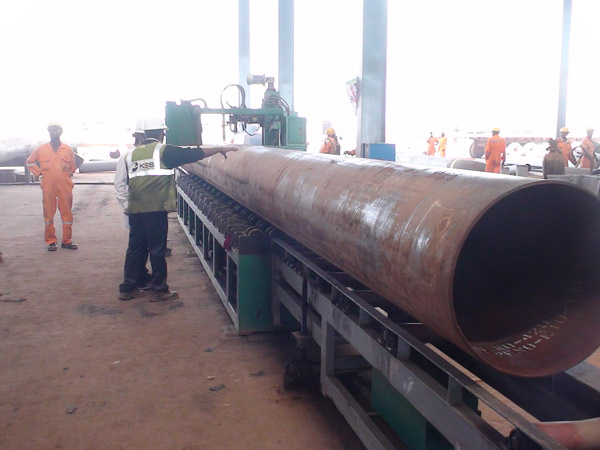

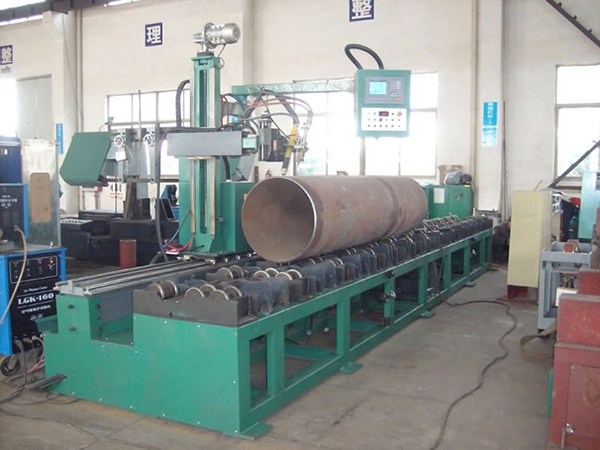

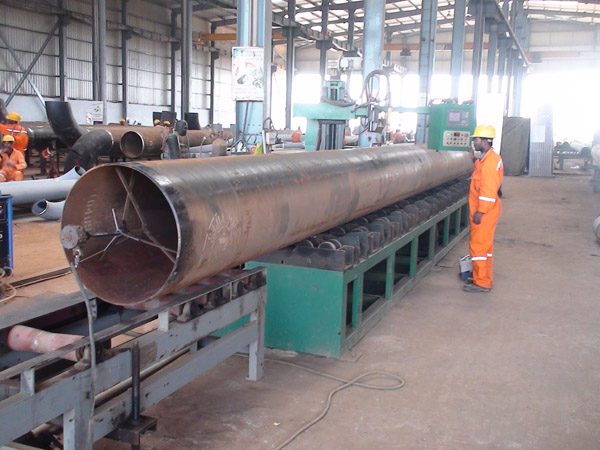

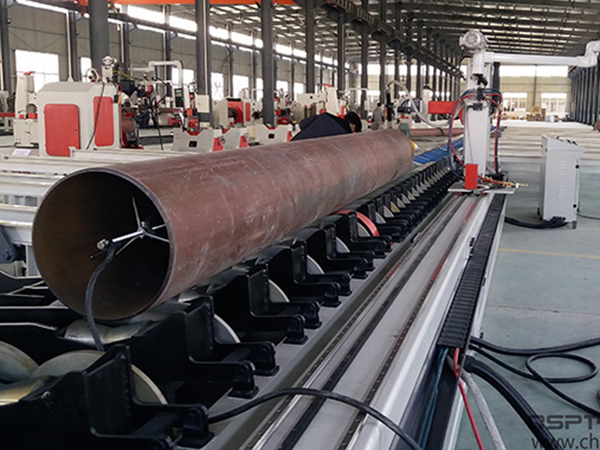

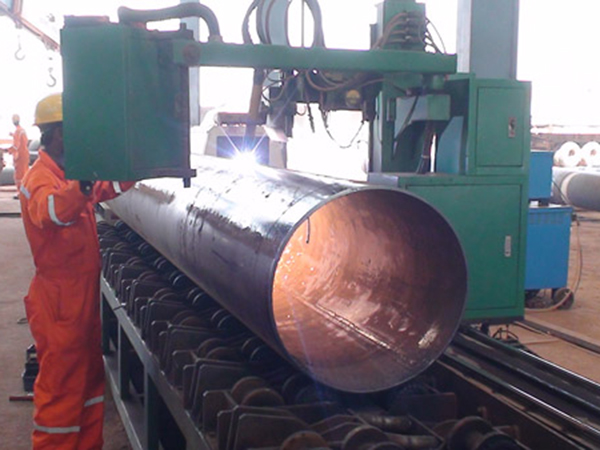

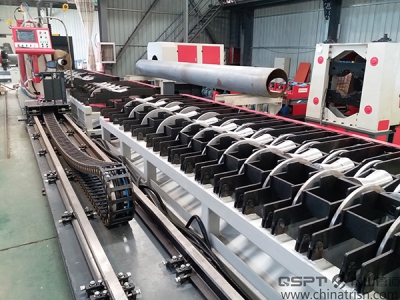

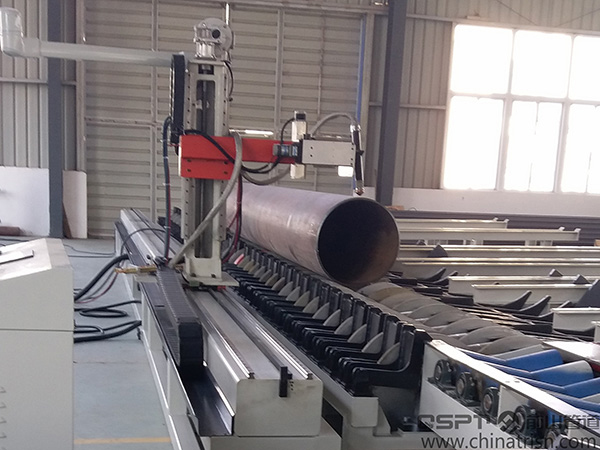

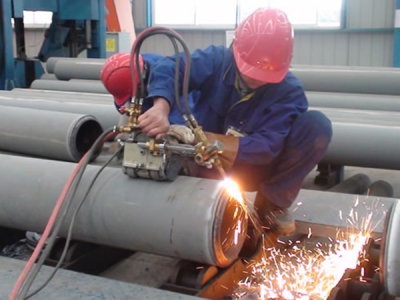

Pipe Flame Beveling and Cutting Machine (Roller Bench Type)
- Pipe Diameter Applicable: DN400/ DN600/DN800 /DN1200
- Applicable Wall Thickness: 5~50 mm
- Applicable Materials: Carbon steel, alloy steel, and cryogenic steel
- Cutting Length: 6350MM
- Bevel Shape: V
- Cutting Direction: Lengthwise

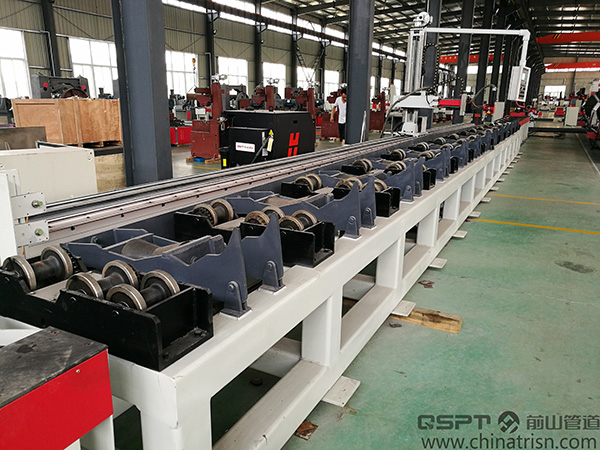

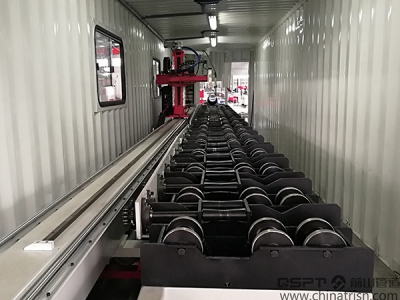

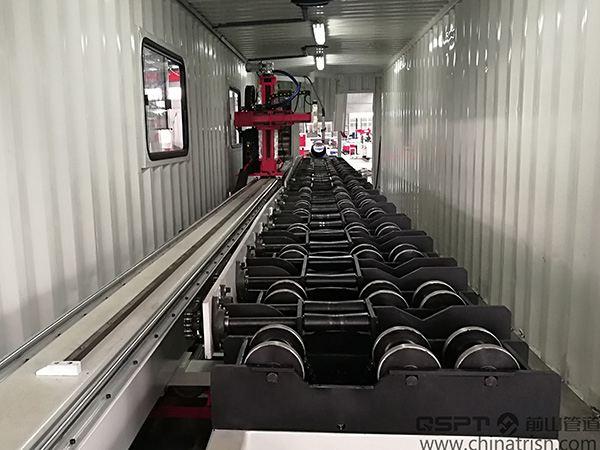

- Roller Bench:
(1). Structure: Three line steel roller with fixed distance
(2). Roller Bench Length: 7000MM
(3). Driving System: Servo motor + precision reducer
(4). Rev: 0~2.5M/Min (VF stepless speed adjustment)
(5). Roller Bench Material: 45#, Surface bluing treatment
(6). Rotation Accuracy: <2.0MM

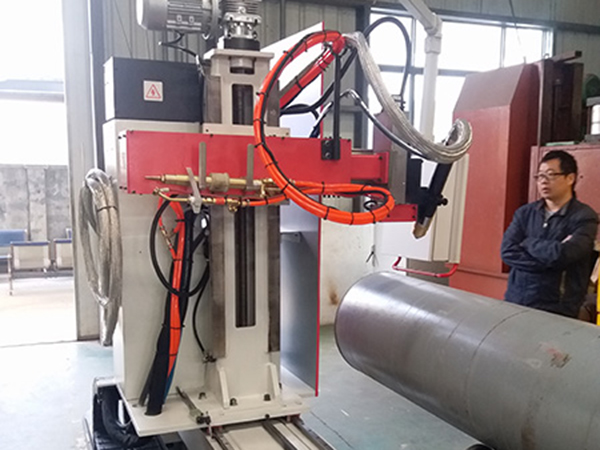

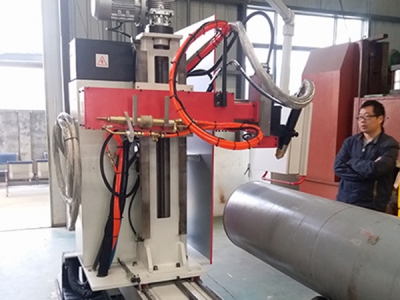

- Trolley System:
(1). Trolley Travel: 6350MM (moving lengthwise)
(2). Cutting Torch Travel: 700MM (up/down); 300MM (in/out)
(3). Cutting With: Flame cutting (can be equipped with plasma cutting)
(4). Cutting Torch Angle: ±45° (adjustable)
(5). Cutting Torch Quantity: One piece of flame cutting torch/three pieces of flame cutting torch
(6). Angle Error: <2°
(7). Length Fixing Accuracy: <2.0MM
- Control System: SH-2000H Flame CNC Cutting System
- Length-Measuring System: CNC length measuring which is included in the control system
- Conveying System: Built in conveying system equipped with a lifter; additionally, a set of conveying system can be provided for bevel cutting machine if necessary and conveying can be implemented manually or electrically.
- The on-line performance of the pipe flame beveling and cutting machine is very good (designed as per the on-line equipment of the production line).
- The pipe flame beveling and cutting machine offers a beveling speed of ≤3Min /pipe bevel (DN200 SCH40)/≤5Min/two pipe bevels (DN200 SCH40).
- It offers bevel cutting: Cutting off and with one bevel of the pipe at simultaneously for/cutting off and with two bevels of the pipe simultaneously.

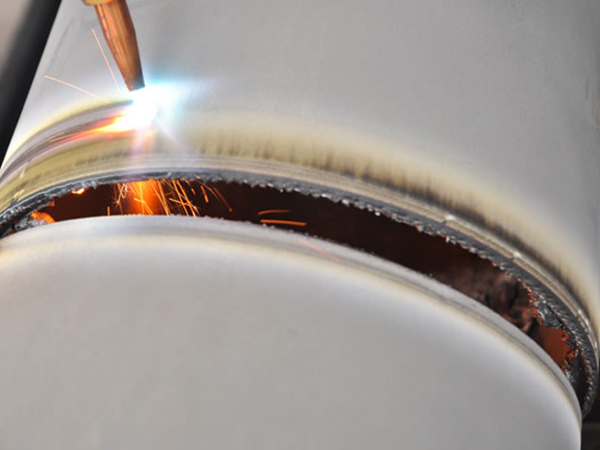

- It offers good bevel quality.

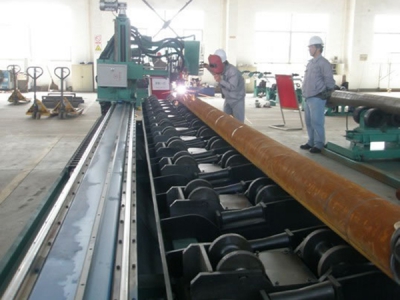

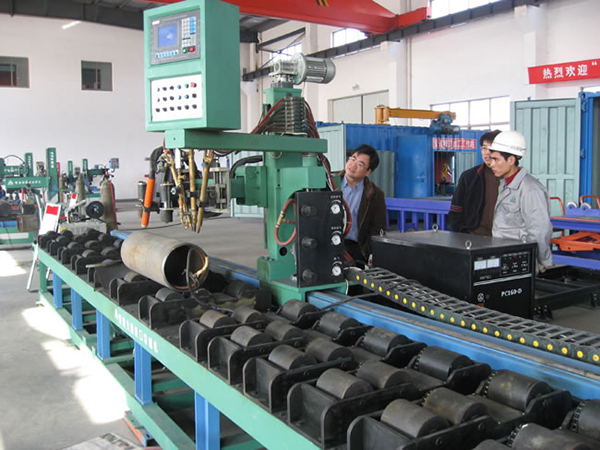

- Flame/Plasma Cutting; built-in motor roller conveying system; the roller-bench type structure with three rows of small wheels coated with stainless steel or two rows of big wheels coated with stainless. Driving by Servo motor + Reducer; control with PLC cutting system; CNC cutting to length controlled by man-machine interface.
As a specialized pipe flame beveling and cutting machine manufacturer and supplier based in China, Qianshan also provides axial pipe end beveling machine, pipe automatic welding machine, pipe cutting and beveling workstation, piping fabrication fast fitting-up machine, and more.
