Automated Pipe Racking System for Pipe Spool Prefabrication

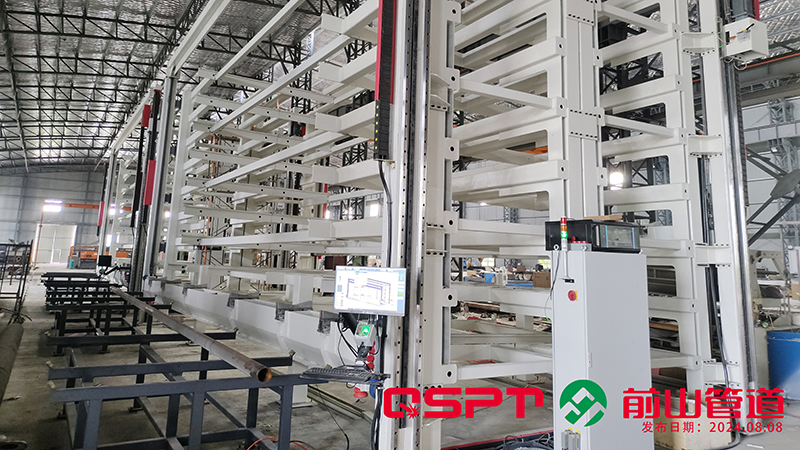

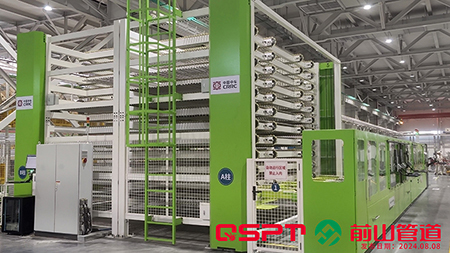

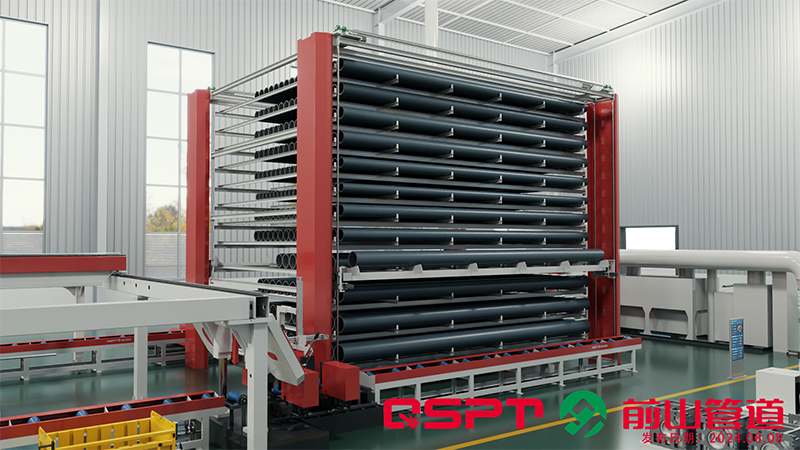

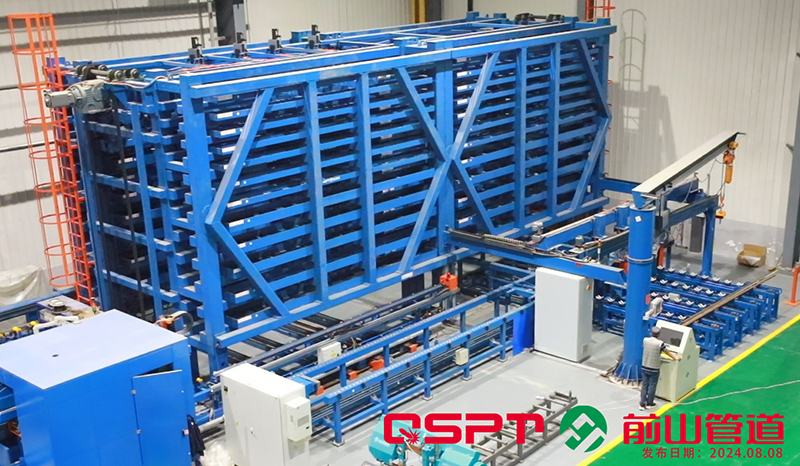

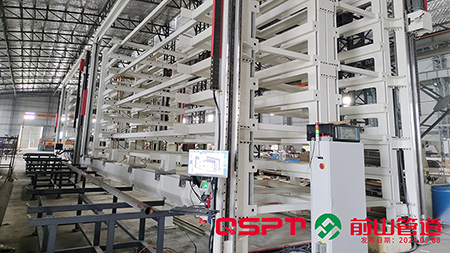

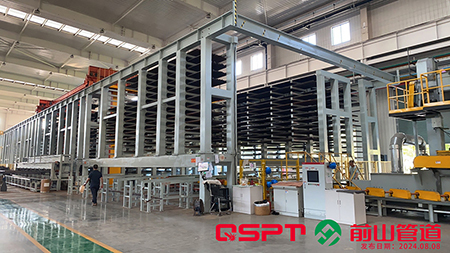

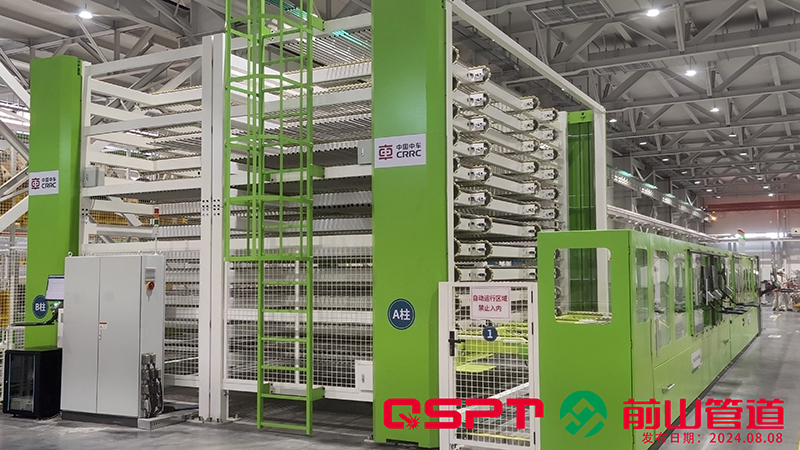

Vertical storage system for storing and retrieving pipes and fittings

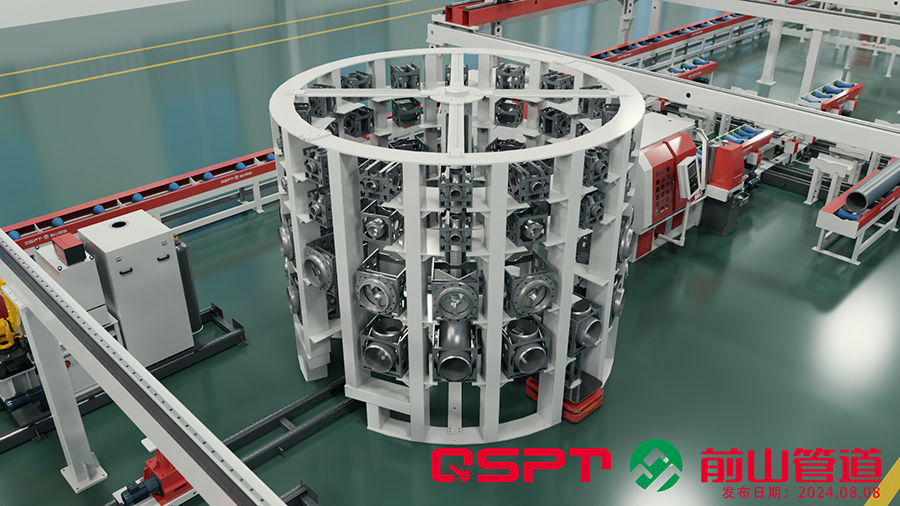

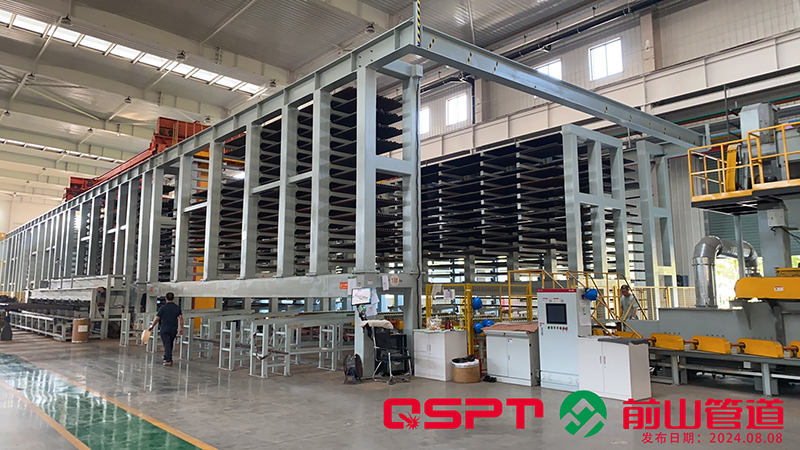

The intelligent three-dimensional warehouse for pipeline prefabrication consists of two main sections: the intelligent pipe storage warehouse and the intelligent pipe retrieval warehouse. This advanced storage system is specifically designed to enable the smart access, management, and organization of essential materials, including pipes, pipe fittings, and prefabricated pipe sections, ensuring seamless efficiency throughout the pipeline prefabrication process.

• Optimized design. The intelligent three-dimensional warehouse for pipeline prefabrication is designed to optimize material storage, retrieval, and management. It utilizes a multi-level three-dimensional structural design, integrating modular storage, palletized organization, and various rack configurations (horizontal and inclined).
• Advanced technology. The system is equipped with automated storage and retrieval system (AS/RS), material handling equipment (such as stacker cranes and conveyor carts), and intelligent management software. These technologies enable seamless tracking, intelligent access, and real-time inventory control of pipeline prefabrication materials.
• High efficiency. The warehouse is primarily used for the storage and management of pipes, fittings, and prefabricated pipe sections processing, ensuring a streamlined and efficient pipeline prefabrication workflow.
