Pipe Fit-Up & Root Pass Welding System for Pipe Spool Prefabrication

Pipe fabrication equipment for aligning, fitting and welding of pipe segments, flanges, and fittings

  • Pipe Fit-Up & Root Pass Welding System
  • Pipe Fit-Up & Root Pass Welding System
  • Pipe Fit-Up & Root Pass Welding System

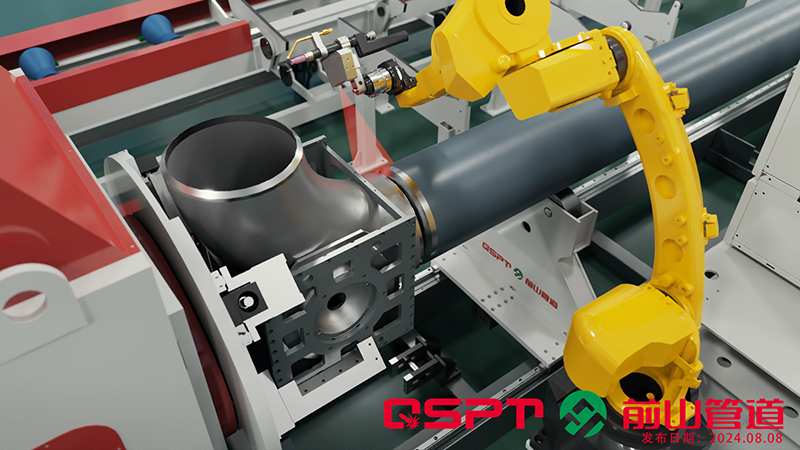

The pipe fit-up and root pass welding system plays a crucial role in pipe prefabrication and installation. Employing advanced sensors and laser vision technology, the system provides real-time monitoring of pipe diameter, wall thickness, and length. This ensures precise fit-up, resulting in superior welding performance and minimized tolerance.

Model: SPIWC-12Ab

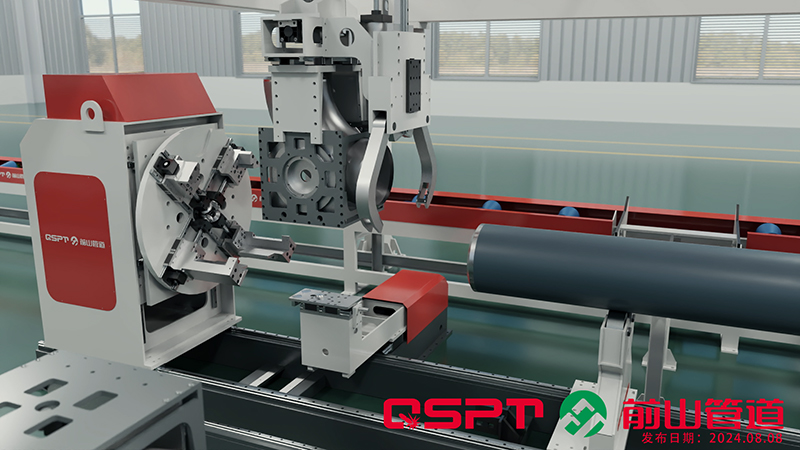

The pipe fit-up and root pass welding system consists of:

  • Head frame clamping drive system
  • Chuck tensioning and centering system (machining chuck)
  • Binocular laser vision system
  • EWM hot wire TIG power supply
  • Tungsten electrode automatic replacement system
  • Workpiece support trolley system
  • PLC control system
  • Tailstock clamping drive system
  • Visual robot control system
  • Welding rail trolley system
  • Steel structure box-type base
  • Fanuc welding robot

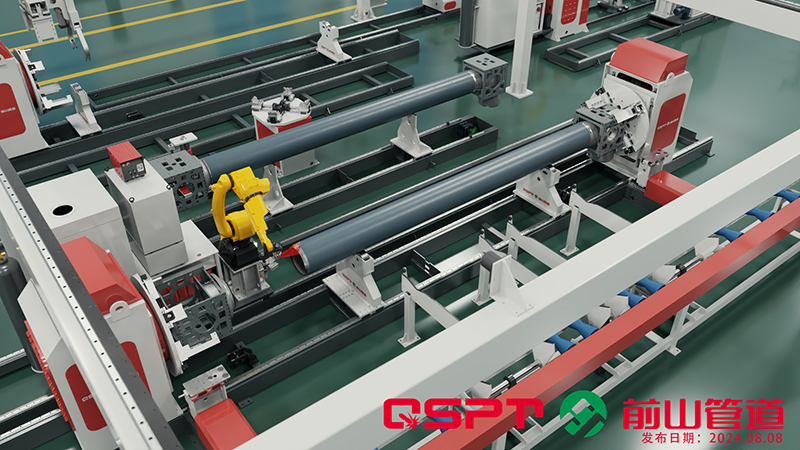

Applicable Production Line

Pallet carrier type intelligent pipe prefabricated production line

Applicable Pipe Spool

One-dimensional pipe spool with pipe fittings on one or both sides (elbows with special module)

Applicable Process

Truss manipulator intelligent hoisting, machining chuck clamping, vision + robot intelligent pairing, intelligent TIG spot welding, intelligent TIG bottoming

Applicable Range

DN50-300 (diameter) × 3-20mm (wall thickness)

Features
  • High accuracy and stability. The system features a centering clamping mechanism and roller frame to precisely center, clamp, and convey pipe spools. This ensures stability and accuracy during the fit-up process.
  • High efficiency. An efficient welding power supply and torch are included, supporting TIG, MIG, SAW, and other welding methods to accommodate various pipe materials and specifications.
  • High quality. Automatic wire feeding and weld tracking technologies guarantee welding process continuity and stability, resulting in improved weld quality.
