Pipe Cutting & Beveling System for Pipe Spool Prefabrication
Pipe fabrication equipment for cutting and beveling pipes to fit the design specifications
The intelligent pipe cutting and beveling system is designed for smart transformation and optimization of pipe cutting and beveling processes.
Model: PSEBS-24Aa

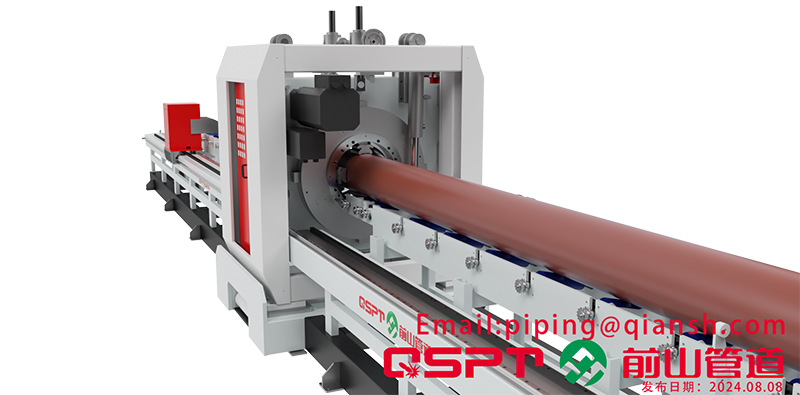

The intelligent pipe cutting and beveling system consists of:
- CNC pipe end beveling machine
- Roller lifting and conveying system
- PLC motion control system (S1500)
- QR-code data collector
Applicable Production Line
Semi-intelligent pipe prefabricated production line which is designed with intelligent/QR code scanning to recall the stored program
Applicable Pipe BevelV-shaped, U-shaped, VV-shaped, VU-shaped, etc
Applicable Process

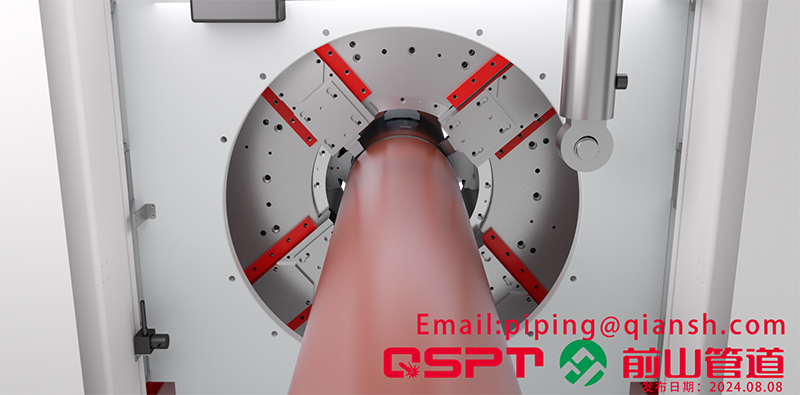

Straight pipe longitudinal roller conveyor, clamping of straight pipes using left and right pincers, code scanning, data reading and program recalling, CNC beveling of straight pipe end faces.
Applicable Range
DN100-600 (diameter) × 5-60mm (wall thickness)
- High efficiency. The intelligent cutting and beveling system enhances processing quality and efficiency by integrating a high-precision control system with efficient equipment. This reduces manual operations, material waste, and rework, leading to lower production costs.
- High safety. Enclosed machine tool covers and safety doors effectively isolate hazardous elements like metal shavings and coolant spray, improving machining process safety.
- High productivity. Intelligent management and optimized functions provide real-time monitoring and data analysis of the machining process, streamlining production management.
