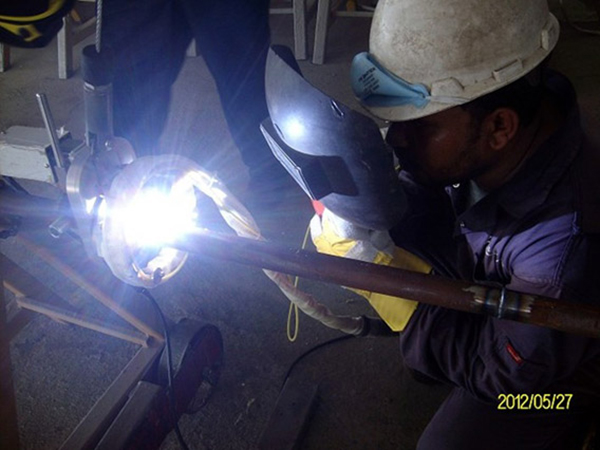

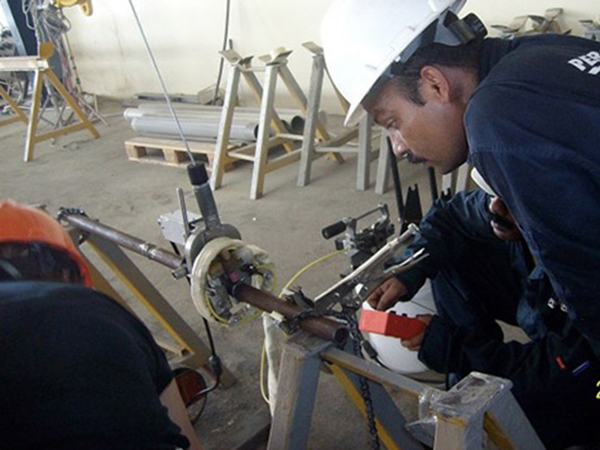

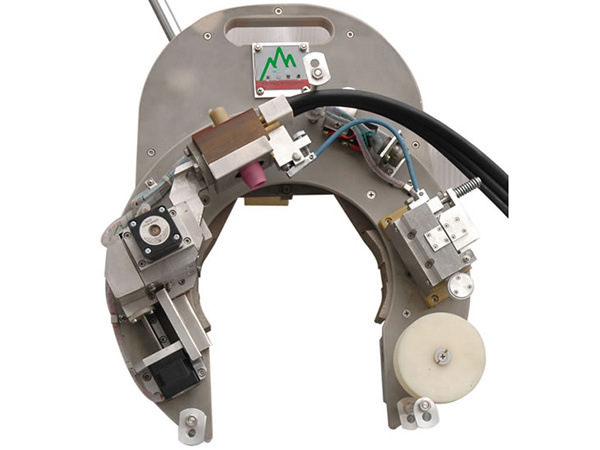

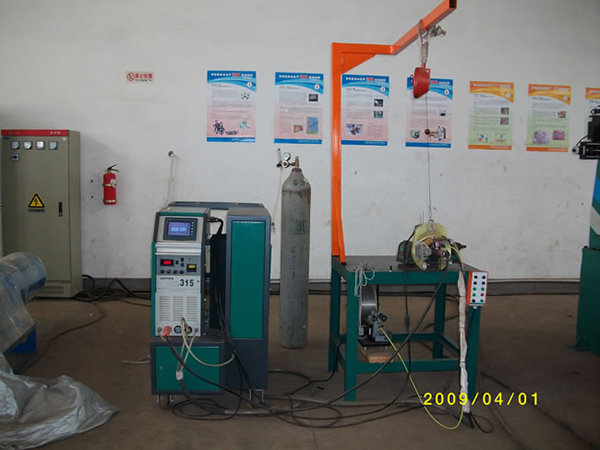

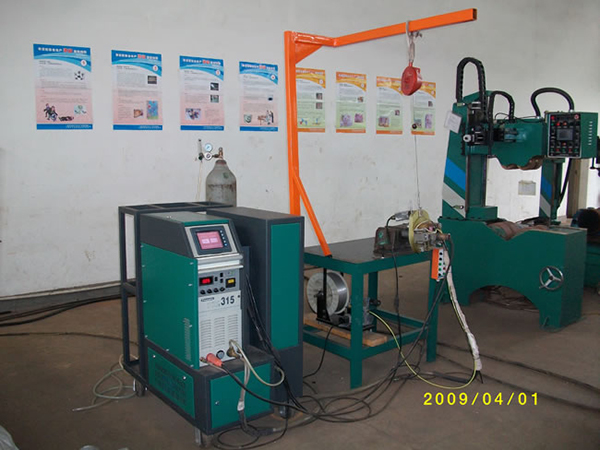

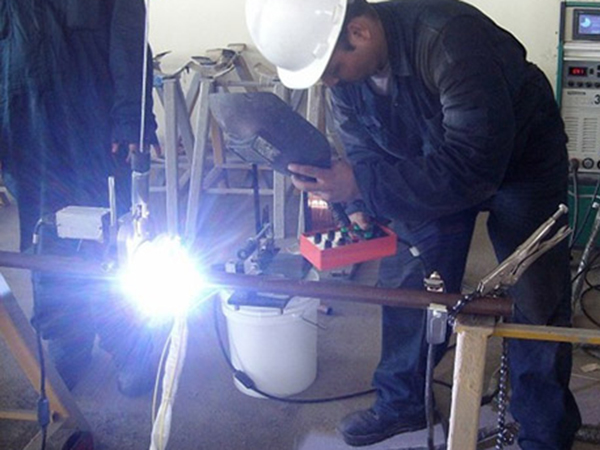

Orbital Automatic Pipe Welding Machine

Home » Products » Special Welding Equipment » Orbital Automatic Pipe Welding Machine (GTAW/TIG)
Orbital Automatic Pipe Welding Machine

Model: PAAWM-1HC/03C/06C/08C

Applications
1. The orbital automatic pipe welding machine is used in the petrochemical, boiler, refrigeration, medical, voyage, pressure vessel, shipping, food machine, atomic power industries, etc.
2. The applicable scope is O.D. φ16mm~φ230mm, and pipe-pipe, pipe-elbow, pipe-flange, pipe-valve body, etc., carbon steel, alloy steel, stainless steel and so on materials butt welding of wire feeding or no wire feeding autolysis.

Technical Parameters of the Orbital Automatic Pipe Welding Machine (GTAW/TIG)
Diameter of Pipe: Φ16-40, Φ36-90, Φ70-160, Φ140-230
Wall Thickness of Pipe: 1-10mm
Applicable Materials: Carbon steel, Alloy steel, Stainless Steel, Cryogenic steel, etc.
Welding Speed: 0.4-3 RPM, 0.2-2 RPM, 0.1-1RPM, 0.07-0.5 RPM
Width of Oscillating: ± 8 mm
Speed of Oscillating: 0.5-10mm/s
Wire Feed Speed: 0-1500mm/min
Cooling Mode: Water-cool
Dip Angle of Weld Gun: 0-45°

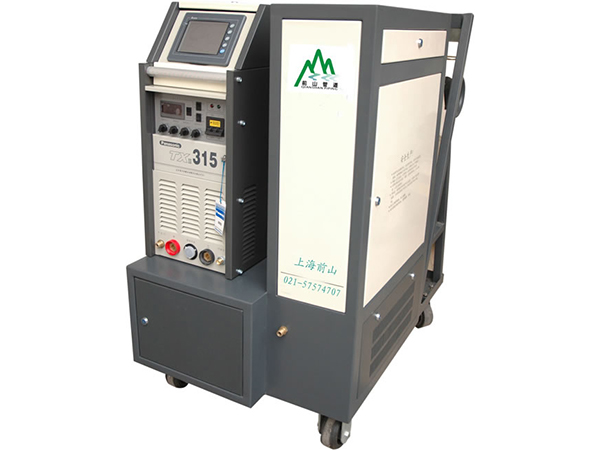

Power Supply and Controlling System:
Rated Input Voltage: 380v
Rated Input Capacity: 11.5KVA
Rated Input Power: 9.0kw

Qianshan is an experienced orbital automatic pipe welding machine manufacturer based in China. Some of our primary products include pipe fabrication production line, pipe plasma beveling and cutting machine, high speed pipe end beveling machine, and piping fabrication fast fitting-up machine.
