Automatic Piping Welding Workstation (Type-A)
- Pipe Diameter Applicable: DN400/DN600
- Pipe Wall Thickness Applicable: 3-20/3-20/3-20/10-60MM
- Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel

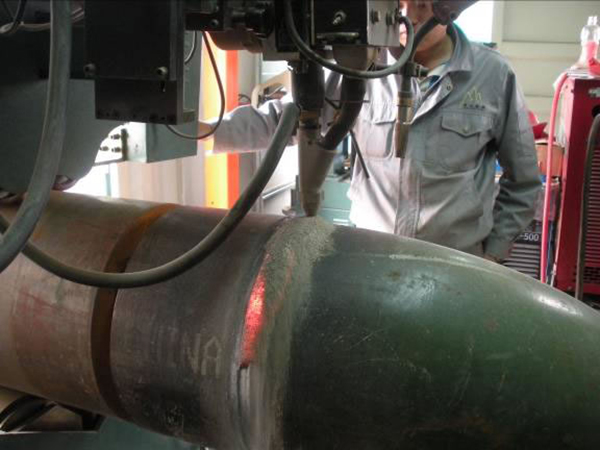

- Welds Applicable: Various of butt welds for pipe spools such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc.
- Welding Procedure: FCAW/FCAW/FCAW/SAW (Option or as per request)
- Welding Power: NBC-500/NBC-500/NBC-500/MZ-630 (Option or as per request)
The automatic piping welding workstation is used for projects with a majority of standard wall thickness pipes and few heavy wall thickness pipes or projects with a majority of heavy wall thickness pipes and few standard wall thickness pipes (PAWWS-24Ad).

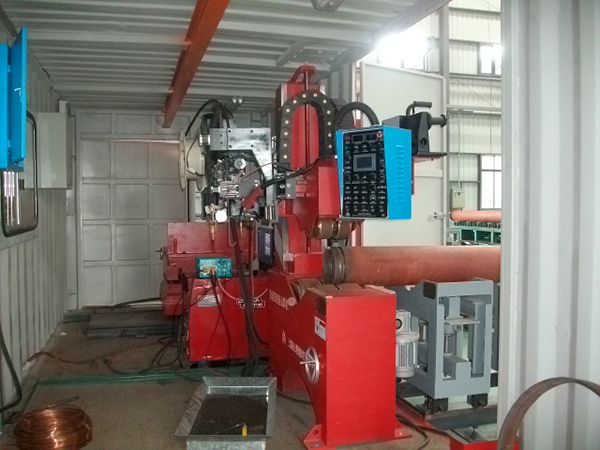

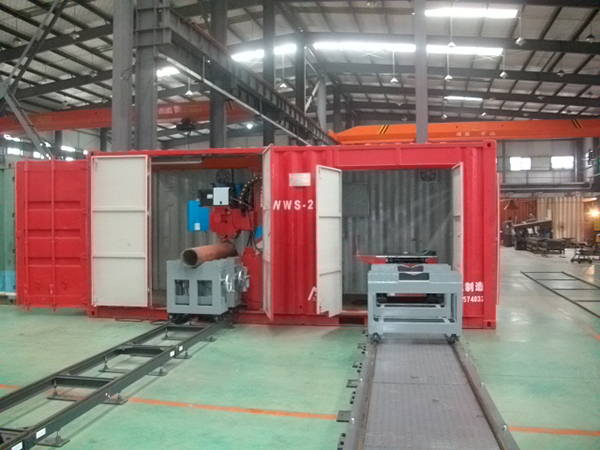

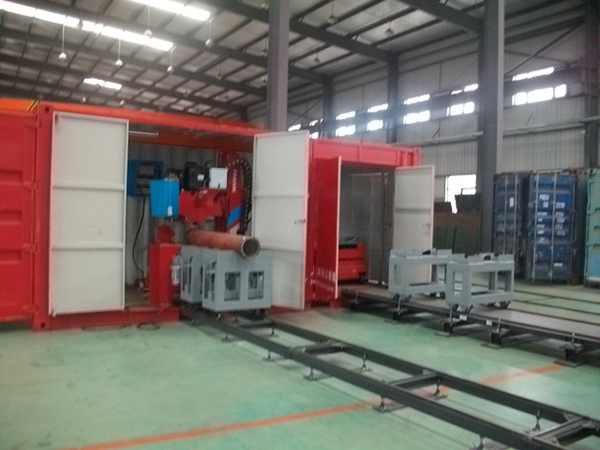

- The basic configuration of the automatic piping welding workstation consists of the one piece of 6m container made with special retrofit, two sets of piping prefabrication automatic welding machine/piping cantilever automatic welding machine/automatic portable piping welding machine/automatic piping welding machine, two sets rail and trolley conveying system, two sets of piping cantilever cranes (option) and two fcaw welding source/fcaw welding machines/fcaw welding machines/saw welding machines.
- The production efficiency of the automatic piping welding workstation is 450~650 O.D-Inch per day (DN200 SCH40).

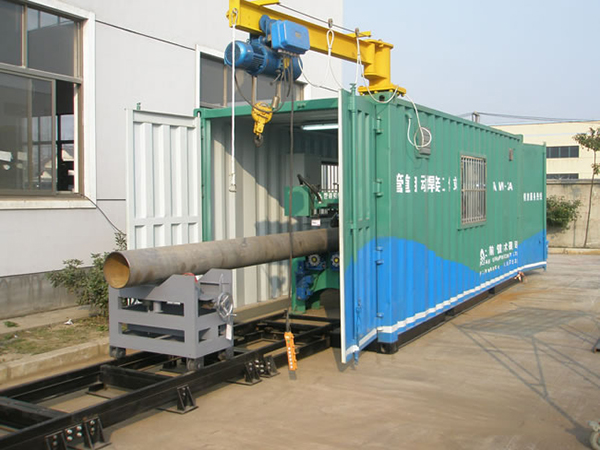

- It offers excellent equipment mobility (without limitation of radiation radius when using container as carrier).
- Specialized field workstation; High fitting-up & welding efficiency, good quality; Suitable for fitting–up & auto welding all kinds of spool pieces. Equipped with: one specially retrofitted 6M container + one Pipe Fast Fitting-up Machine/Pipe Fabrication Mechanical Fitting-up center + one Set of Split Pipe Automatic Welding Machine.
Qianshan is a China-based automatic piping welding workstation manufacturer and supplier. Our company also provides pipe cutting and beveling workstation, pipe flame beveling and cutting machine, pipe automatic welding machine, piping fabrication fast fitting-up machine, and much more.
