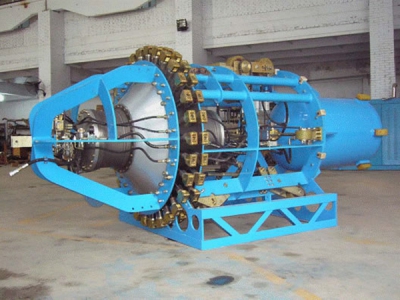

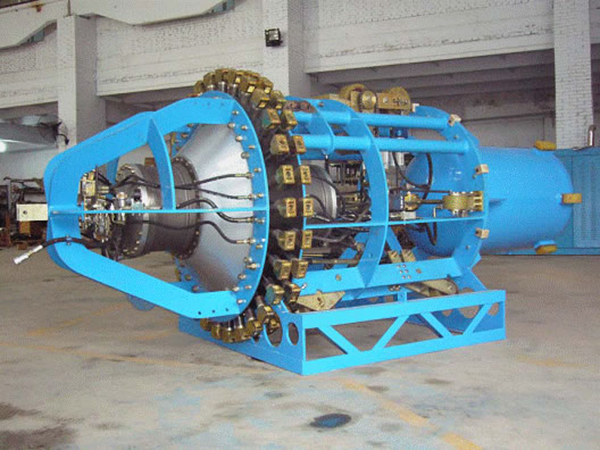

Pneumatic Pipeline Internal Line-Up Clamp

Home » Products » Pipeline Construction Equipment » Pneumatic Pipeline Internal Line-Up Clamp
Pneumatic Pipeline Internal Line-Up Clamp

Model: PPLUC-18A/22A/26A/32A/36A/40A/44A/48A/52A/56A

Technical Parameters of the Pneumatic Pipeline Internal Line-Up Clamp
Applicable Pipe Diameter: φ406-457/φ508-559/φ610-660/φ711-813/φ813-914/φ914-1016/φ1067-1118/φ1168-1219/φ1219-1320/φ1320-1420
Press Amount: 10*2/10*2/12*2/12*2/12*2/18*2/12*2/24*2/24*2/30*2/
Support Force: 8.5T/150T/183T/270T/270T/450T/270T/650T/650T/650T/
Driving System: Driving by motor, single side single wheel (18A-36A)/single side two wheels (40A-56A)
Braking System: Single side single brake (18A-36A)/Three sides double brakes (40A-56A)
Overall Dimension: φ360*1800/ φ470*2200/ φ550*2700/ φ650*2900/ φ750*2900/ φ815*3100/ φ1000*3700/ φ1100*4100/ φ1170*4200/ φ1270*4200
Weight: 290Kg/430Kg/550Kg/700Kg/860Kg/1100Kg/1500Kg/1800Kg/2100Kg/2200Kg

We are pneumatic pipeline internal line-up clamp manufacturer and supplier based in China. We offer a vast range of products, including orbital automatic pipeline welding machine, pipe automatic welding machine, pipe fabrication production line, radial pipe end beveling machine, and much more.
