Numerical Control Pipe End Beveling Machine

Home » Products » Pipe Fabrication Beveling Equipment » Numerical Control Pipe End Beveling Machine

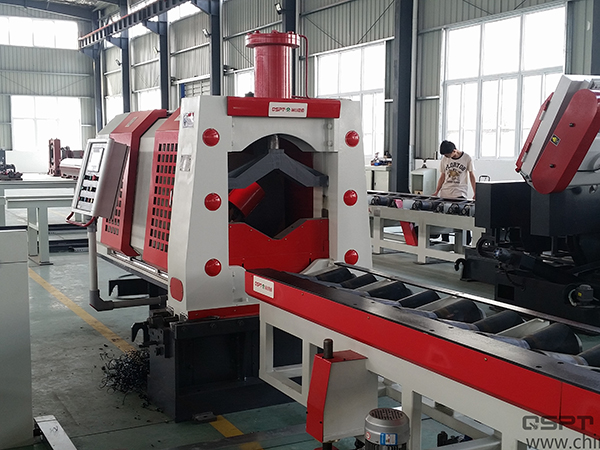

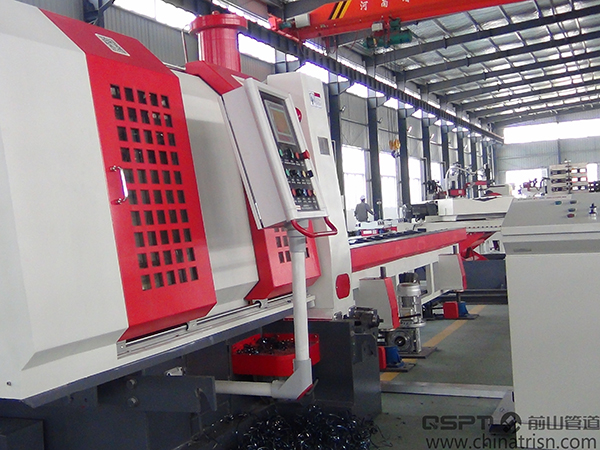

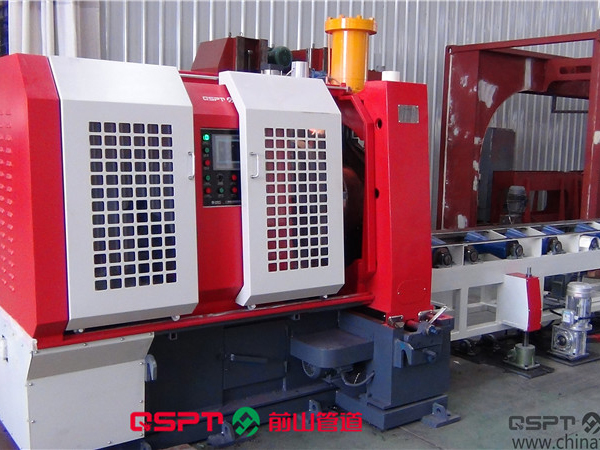

Numerical Control Pipe End Beveling Machine

Model: FPEBM-16Ca/24Ca/32Ca; FPEBM-24Cb/32Cb

Features
1. The numerical control pipe end beveling machine offers good on-line performance (designed as per the on-line equipment of the production line).
2. It offers a beveling speed of ≤5Min /pipe bevel (DN200 SCH40).
3. It offers bevel cutting of: cutting a pipe with other equipment such as band saw and then machining each bevel.
4. The bevel quality of the numerical control pipe end beveling machine is very good.

Applications
The numerical control pipe end beveling machine is used for machining the U or V shape bevels for a number of pipes with heavy wall thickness.

Technical Parameters of the Numerical Control Pipe End Beveling Machine
Pipe Diameter Applicable: DN50-400(φ57-426)/DN100-600 (φ114-610)/DN200-800 (φ219-813); DN100-600 (φ114-610)/DN200-800 (φ219-813)
Pipe Wall Thickness Applicable: 4-90mm; 6-180MM
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel, etc.
Bevel Shape: U, X, V and double V
Cutting Direction: Radial automatic differential cutting feed or axial semi-automatic motor cutting feed (inlet frequency); radial NC motor cutting feed or axial NC motor cutting feed
Retracting Direction: Radial automatic motor retracting or axial automatic motor retracting (inlet frequency); radial NC motor retracting or axial NC motor retracting
Driven by: Motor
Clamping System: Work piece is clamped by hydraulic cylinder and centering automatically
Bracket System: Screw lifting adjustable
Rev of the Principal Axis: Stepless speed control and variable frequency
Axial Displacement: 80mm(principle axis) 100mm(machine head); 150mm(principal axis), 300mm (machine head)
Bevel Angle of Tool Rest: 0°~45°
Widthwise Displacement: ±50MM; ±100MM
Control System: PLC Controlling; CNC Controlling
Automatic Aligning: At the end of beveling machine conveying system it can be equipped with lifting device if necessary to automatically adjust automatically the center elevation of the pipe to bevel pipes with different diameters
Conveying System: End beveling VF conveying systems driven by motor are equipped at front and rear sides of the beveling machine if necessary

As an experienced numerical control pipe end beveling machine manufacturer and supplier based in China, Qianshan also provides high speed pipe end beveling machine, pipe fabrication production line, pipe automatic welding machine, automatic piping welding workstation, and more.
