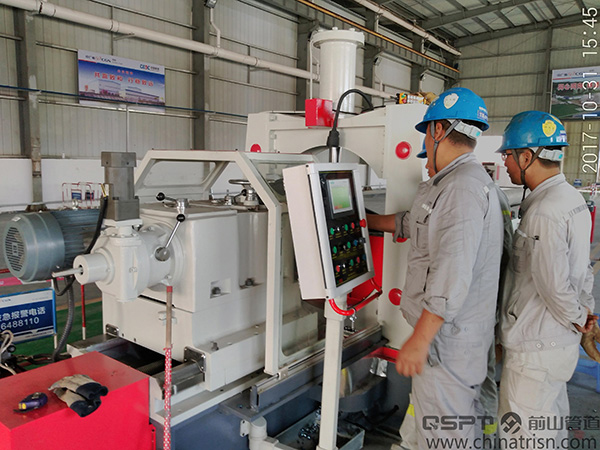

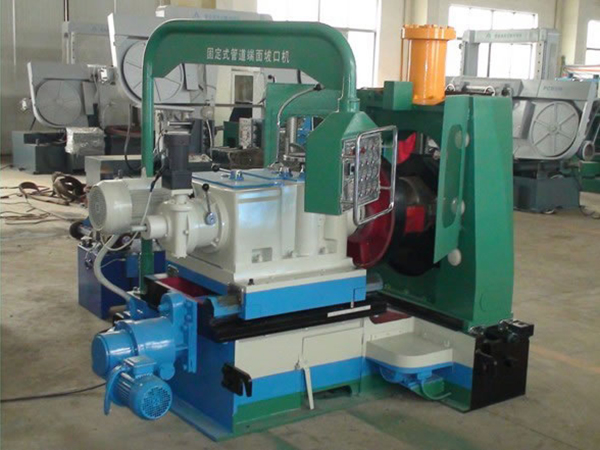

Radial Pipe End Beveling Machine

Model: FPEBM-16Aa/24Aa/32Aa

• Pipe Diameter Applicable: DN50-400(φ57-426)/DN100-600(φ114-610)/DN200-800(φ219-813)
• Pipe Wall Thickness Applicable: 4-90mm/ 6-180MM
• Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel, etc.
• Bevel Shape: U, X, V and double V
• Cutting Direction: Radial automatic differential cutting feed
• Retracting Direction: Radial automatic motor retracting
• Driven by: Motor
• Clamping System: Work piece is clamped by (screw rod) hydraulic cylinder
• Bracket System: Screw lifting adjustable
• Rev of the Principal Axis: 3shifts (67-123rpm)/9 shifts (34-304rpm)
• Axial Displacement: 80mm(principle axis) 100mm(machine head); 150mm (principal axis), 300mm (machine head)
• Bevel Angle of Tool Rest: 0°~37.5°
• Widthwise Displacement: ±50mm; ±100mm
• Control System: Gear shift for main shaft, VF speed change for axial direction movement and manual control
• Mechanical Aligning: At the end of beveling machine conveying system it can be equipped with lifting device if necessary to automatically adjust the center elevation of the pipe to bevel pipes with different diameters

Applications
The radial pipe end beveling machine is used for machining the U or V shape bevels for a number of pipes with heavy wall thickness.

• The radial pipe end beveling machine offers a beveling speed of ≤5Min /pipe bevel (DN200 SCH40).
• It offers bevel cutting of: cutting a pipe with other equipment such as band saw and then machining each bevel.
• Bevel quality of the radial pipe end beveling machine is very good.
