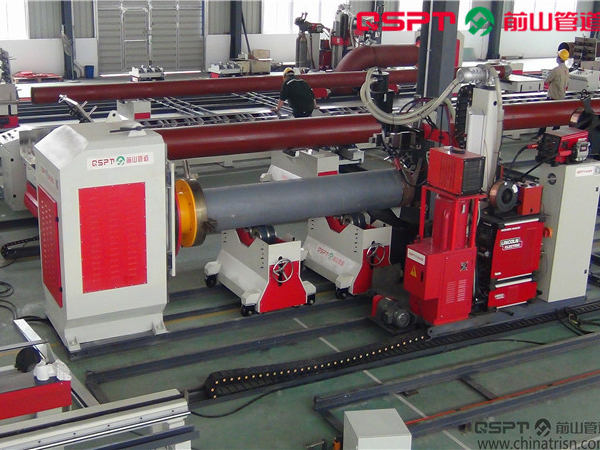

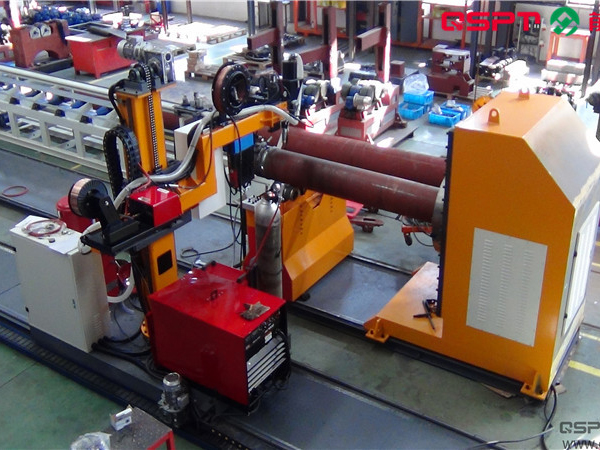

Automatic Piping Welding Machine

Home » Products » Pipe Fabrication Welding Equipment » Automatic Piping Welding Machine (SAW, Cantilever)
Automatic Piping Welding Machine

Model: PPAWM-24Ab/32Ab

Features
1. The automatic piping welding machine offers excellent welding efficiency (300-400 inch/day, which is four times higher than manual welding).
2. The machine is easy to operate.
3. The automatic piping welding machine offers good surface finishing.
4. The machine offers a welding qualification rate of 98% min (without re-working for the skilled operator).
5. The automatic piping welding offers extremely good driving reliability (mechanical clamping for the position changing of the pipe welding and forceful driving).

Applications
The automatic piping welding machine offers broad use for pipe and cover welding of various structures of DN≥150 in various industries.

Technical Parameters of the Automatic Piping Welding Machine (SAW, Cantilever)
Pipe Diameter Applicable: DN150-600(φ168-610); DN200-800(φ219-813)
Pipe Wall Thickness Applicable: 6-60mm
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel, etc.
Welding Line Applicable: Various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc.
Driving System: Pipe welding positioner is used, clamped pipe by 2 (or 3, 4) jaw chuck and drive it by positioner directly/pipe welding driving machine is used, clamped pipe and drive it by chain directly
Trolley System: A welding system is fixed on the arm of the trolley which can move along the track according to the welding location
Bracket System: Separate type of trolley matching for welding machine which may be adjusted along the track according to the length of the pipeline
Speed Regulation Mode: VF stepless speed control system
Adjustment Mode: Manual cross regulator
Control System: A product of our patented technology
Welding Procedure: SAW
Welding Power: OEM products in China (or as per customers' demands)

As a China-based automatic piping welding machine manufacturer and supplier, Qianshan offers pipe automatic welding machine, piping fabrication fast fitting-up machine, high speed pipe cutting and beveling machine, pipe plasma beveling and cutting machine, and much more.
