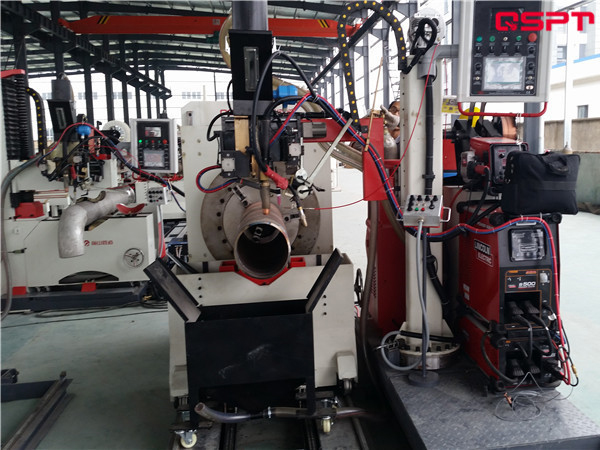

Automatic Piping Welding Machine

Home » Products » Pipe Fabrication Welding Equipment » Automatic Piping Welding Machine (FCAW/GMAW, Cantilever)
Automatic Piping Welding Machine

Model: PPAWM-16Ba/24Ba/32Ba

Features
1. The automatic piping welding machine offers excellent welding efficiency (200-300 inch/day).
2. The machine is easy to operate.
3. The automatic piping welding machine offers excellent surface finishing.
4. It offers a welding compliance rate (without re-working for the skilled operator).
5. The automatic piping welding offers extremely good driving reliability (mechanical clamping for the position changing of the pipe welding and forceful driving).

Applications
The automatic piping welding machine offers extremely broad use for pipe and cover welding of various structures in various industries.

Technical Parameters of the Automatic Piping Welding Machine (FCAW/GMAW, Cantilever)
Pipe Diameter Applicable: DN200-800(φ219-813); DN50-600(φ60-610)/DN50-400(φ60-426)
Pipe Wall Thickness Applicable: 3-30mm
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
Welding Line Applicable: Various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc.

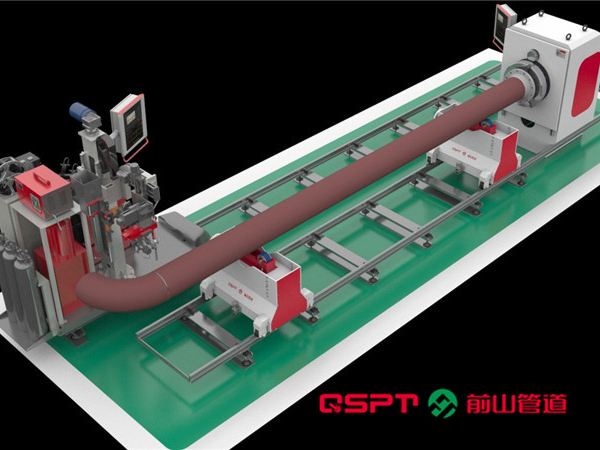

Driving System: Pipe welding positioner is used, clamped pipe by 2 (or 3, 4) jaw chuck and drive it by positioner directly/pipe welding driving machine is used, clamped pipe and drive it by chain directly
Trolley System: A welding system is mounted on the arm of the trolley which can move along the track according to the welding location
Bracket System: Separate type of trolley matching for welding machine which may be adjusted along the track according to the length of the pipeline
Speed Regulation Mode: VF stepless speed control system
Adjustment Mode: Electric cross regulator
Oscillating System: A product of our patented technology, driven by the common motor; step motor driving and digital displaying oscillating width adjusting
Control System: A product of our patented technology, PLC control
Welding Procedure: FCAW/GMAW
Welding Power: OEM products in China or as per customers' demands

Qianshan is a professional automatic piping welding machine manufacturer and supplier based in China. We offer an extensive line of products, including pipe fabrication welding equipment, pipe fabrication conveying equipment, pipe fabrication cutting equipment, pipe fabrication workstation, and much more.
