Transverse Pipe Automatic Conveying System

Home » Products » Pipe Fabrication Conveying Equipment » Transverse Pipe Automatic Conveying System
Transverse Pipe Automatic Conveying System

Model: PHLTS-24A1/A2

Features

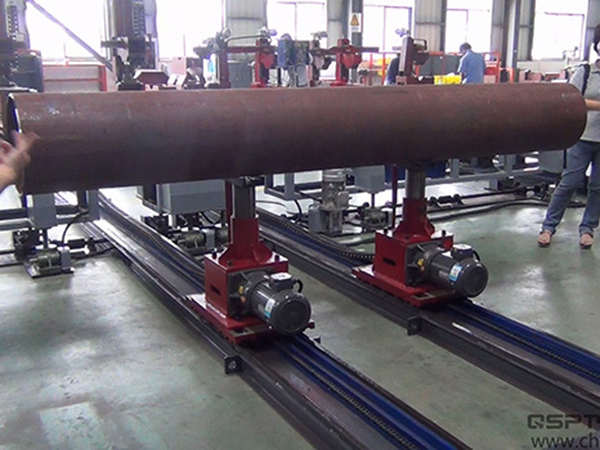

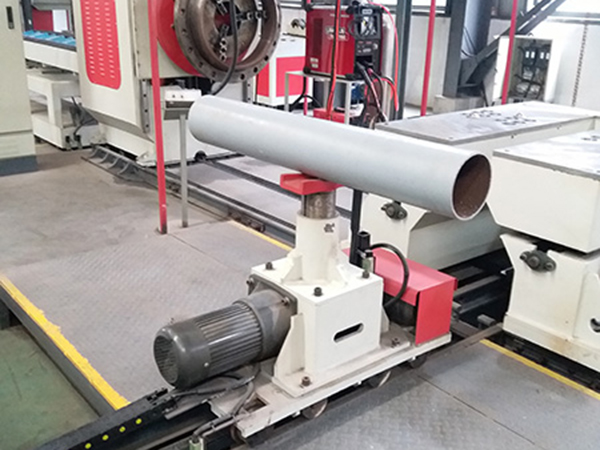

1. The transverse pipe automatic conveying system conveys the pipe or spool pieces transversely when they are beveling or automatically welding.
2. It increases the automatization level in the pipe fabricating plant and decreases the hazards during hoisting.

Technical Parameters of the Transverse Pipe Automatic Conveying System
Pipe Diameter Applicable: DN50~600(φ60~610)
Conveying Length: ≥1000MM (or depending on customers' requirements)
Line Length: 7.5M (or depending on the situation)
Line Height: 800MM
Trolley Number: 4 sets

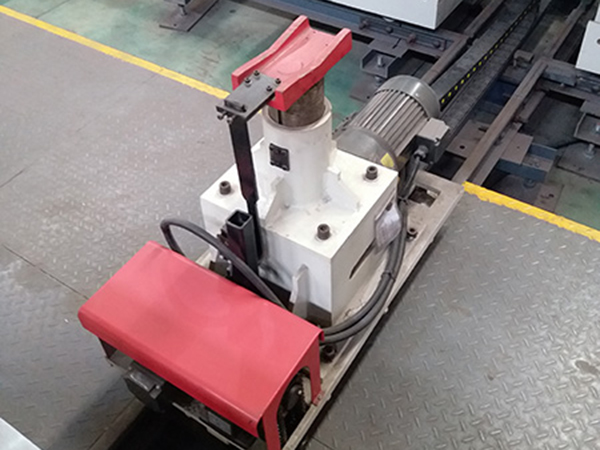

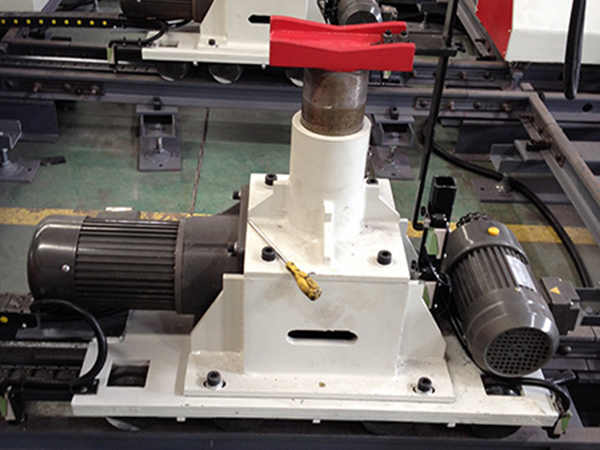

Lifter Mechanism: With screw lifter, driven electrically
Lifter Route: ±30MM
Conveying Mechanism: Chain sprocket mechanism
Speed of Conveying: 0-10M/min
Max Loading Capability: 2500KGS/5000KGS

Qianshan is a professional transverse pipe automatic conveying system manufacturer based in China. In addition to pipe fabrication conveying equipment, we offer pipe fabrication beveling equipment, pipe fabrication cutting equipment, pipe fabrication production line, pipe fabrication welding equipment, and much more.
