Pipe Conveying System for Cutting Machine

Model: PLTPS-24D1/D2

• Pipe Diameter Applicable: DN50~600(φ60~610)
• Conveying Length: Feed in end ≥1,000MM; feed out end ≥500MM
• Line Length: 7.5M at feed in end and 7.5M at feed out end (or depending on situation)
• Line Height: 800MM
• Material of the Roller Bench: Carbon steel with blue treated surface (coated with rubber if necessary)
• Conveying Speed: 2~20M/Min
• Speed Regulation Mode: Manual/VF stepless speed adjustment
• Control System: Manual/PLC control, shared with the pipe cutting length fixing system (or depending on the situation)
• Turnover Mechanism: Nil (or depending on the situation)
• Lifting System: A lifting system could be equipped if required to adjust the center elevation of pipes automatically and to bevel pipes of different diameters

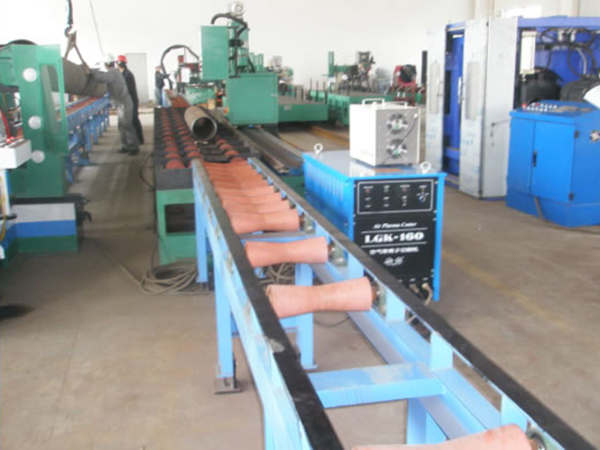

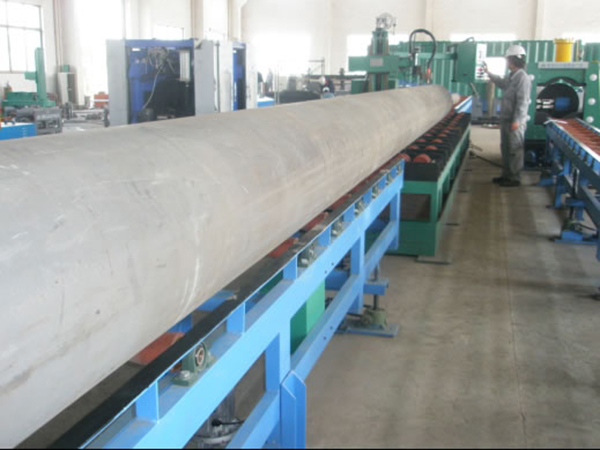

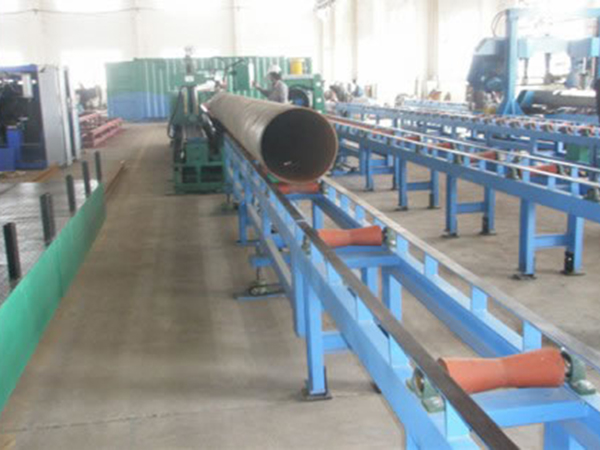

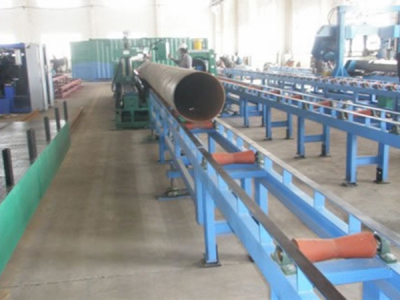

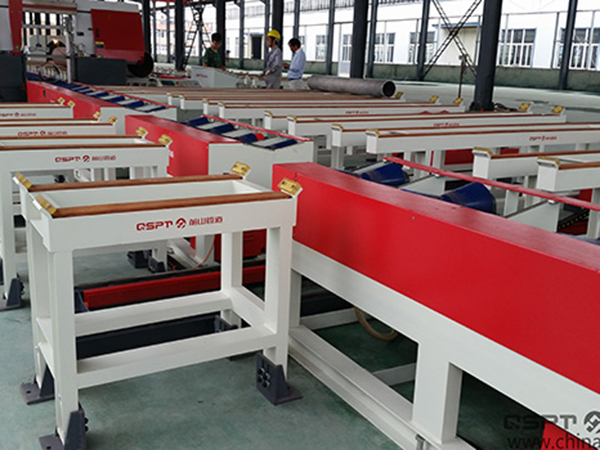

• The pipe conveying system for cutting machine conveys the pipe automatically or manually when the bevel cutting machine works and the pipe can be removed from the machine with a turnover mechanism if necessary.
• It increases the automatization level in the pipe fabricating plant and decreases the hazards during hoisting.
