Pipe Conveying System for End Beveling Machine

Home » Products » Pipe Fabrication Conveying Equipment » Pipe Conveying System for End Beveling Machine
Pipe Conveying System for End Beveling Machine

Model: PLTPS-24B1/B2

Features

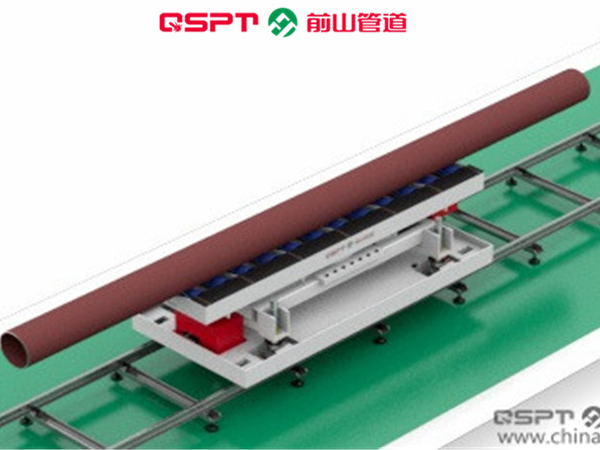

1. The pipe conveying system for end beveling machine conveys the pipe automatically or manually when the end beveling machine works and the pipe can be removed from the machine with a turnover mechanism if necessary.
2. It increases the automatization level in the pipe fabricating plant and decreases the hazards during hoisting.

Technical Parameters of the Pipe Conveying System for End Beveling Machine
Pipe Diameter Applicable: DN50~600(φ60~610)
Conveying Length: ≥500MM
Line Length: 7.5M (or depending on the situation)
Line Height: 800MM
Material of the Roller Bench: Carbon steel with blue treated surface (coated with rubber if necessary)
Conveying Speed: 2~20M/Min
Speed Adjustment: Manual/VF stepless speed adjustment
Control System: Non-PLC control (or depending on the situation)
Turnover Mechanism: Nil (or depending on the situation)

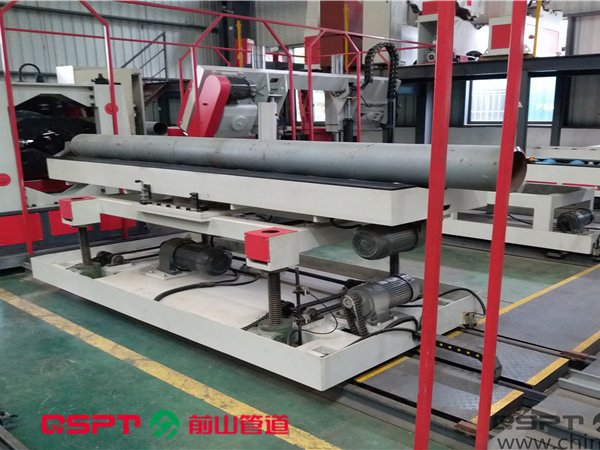

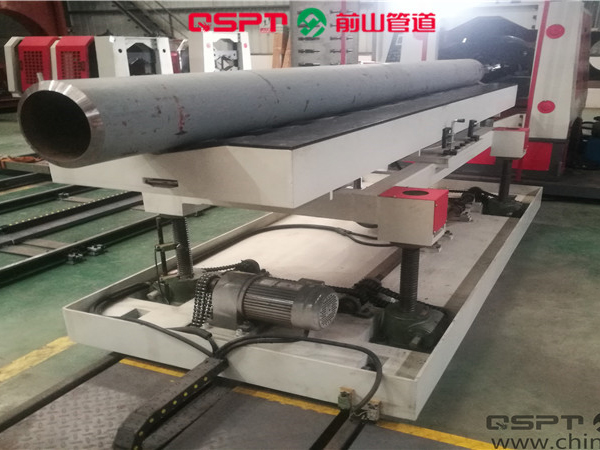

Lifting System: A lifting system is equipped to adjust the center elevation of pipes automatically and to bevel pipes of different diameters
Turning System: A turning system is equipped to turn pipes automatically and to bevel the two end of pipe(option)

Qianshan is pipe fabrication conveying equipment manufacturer based in China. We offer a wide array of products, including pipe conveying system for end beveling machine, pipe cutting and beveling workstation, pipe automatic welding machine, high speed pipe end beveling machine and more.
