Modular Carrier Type Prefabricated Pipe Spool Production Line

Intelligent production line for cutting, beveling, assembling and welding of piping components

Modular Carrier Type
Modular Carrier Type

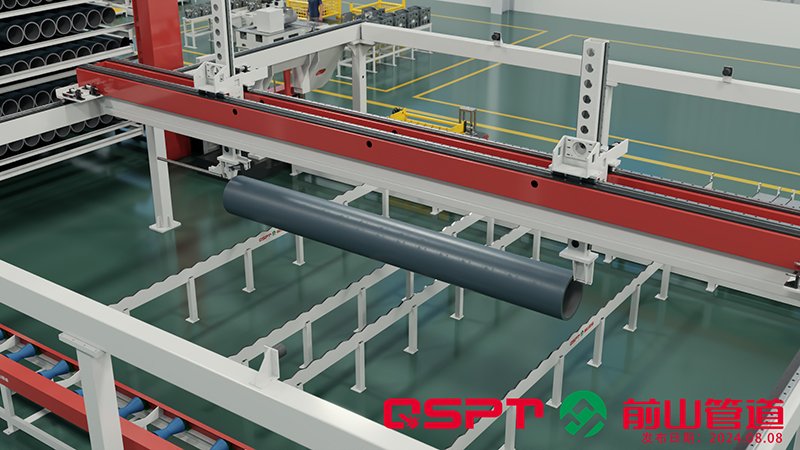

Modular Carrier Type
Modular Carrier Type
Modular Carrier Type

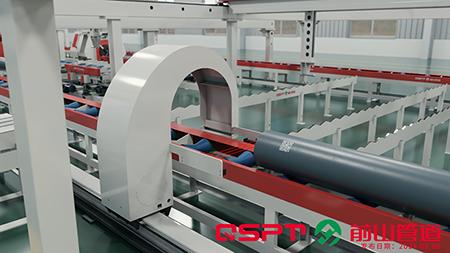

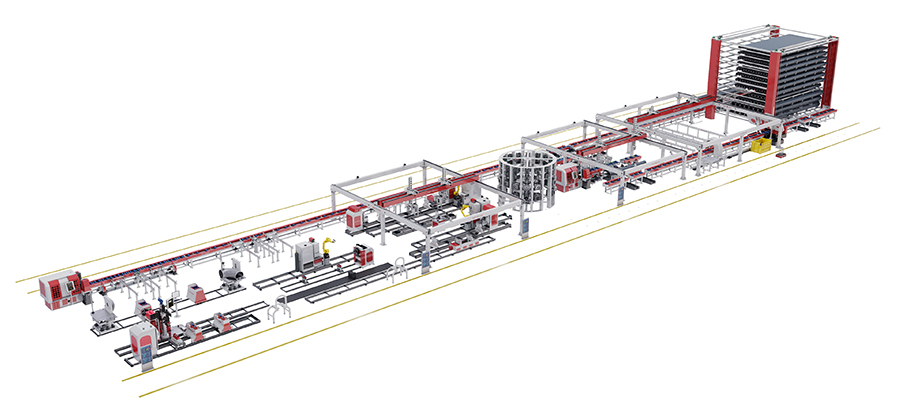

Modular carrier type prefabricated pipe spool production line integrates advanced technologies, including pipe fitting module carrier systems, truss manipulator hoisting, laser vision inspection, robotic grinding and welding, AGV (Automated Guided Vehicle) transportation, and digital imaging. Through an intelligent management, control, and monitoring system, it achieves full automation of the entire pipeline prefabrication process, covering storage, cutting, beveling, assembly, welding, NDT (Non-Destructive Testing), and transportation. Designed for small to medium-diameter pipelines, this system enhances efficiency, precision, and overall production quality.

Technical Parameters
  • Production capacity: 20-150000 inches/month (depending on workshop area and equipment configurations, or as per request)
  • Pipe diameter: DN400/DN600/DN800/DN1000/DN1200
  • Pipe wall thickness: 3-80mm
  • Conveying speed: 2-20m/min
  • Beveling speed: ≤5min/two bevels (DN200 SCH40)
  • Automatic welding rate: ≥60%
  • Prefabrication ratio 50%-80%
  • Design software: PDSOFT 3D
  • Management software: PDSOFT SPFMS
Applications

Modular carrier type prefabricated pipe spool production line is extensively utilized in industries such as petroleum, chemicals, power generation, nuclear energy, and metallurgy for efficient and automated pipeline prefabrication.

Components
large diameter pipe lifting manipulator
  • Modular Carrier Type
  • Modular Carrier Type

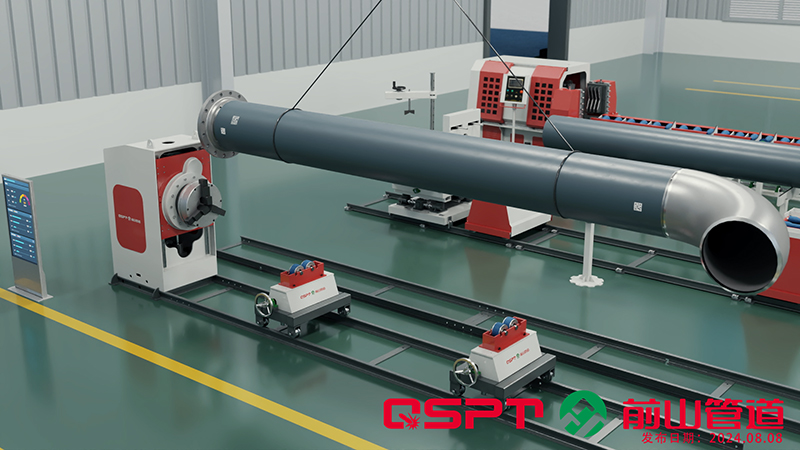

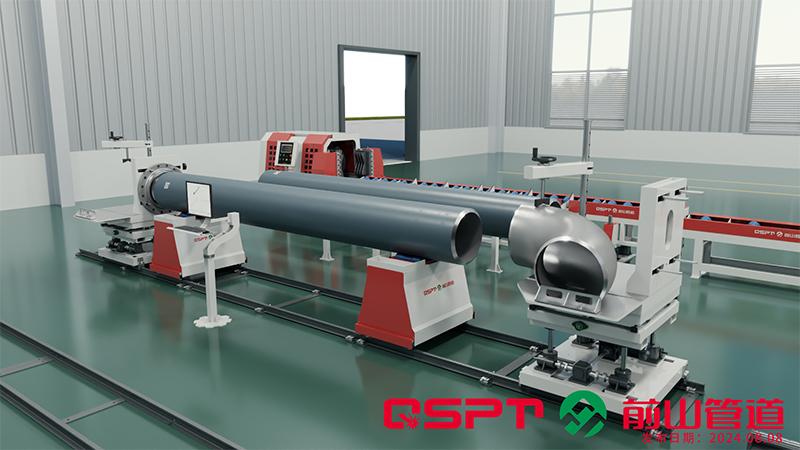

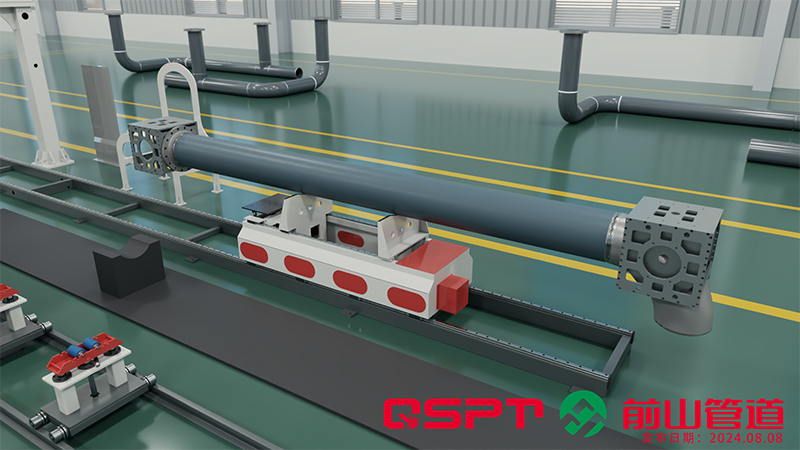

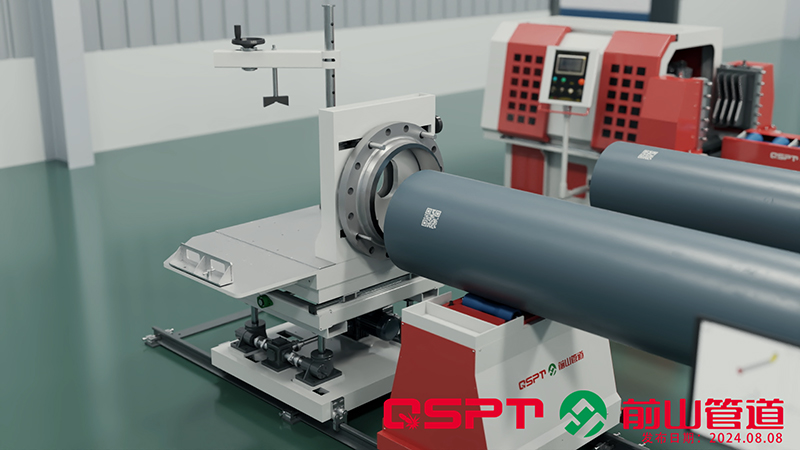

large diameter pipe fit-up system
  • Modular Carrier Type
  • Modular Carrier Type

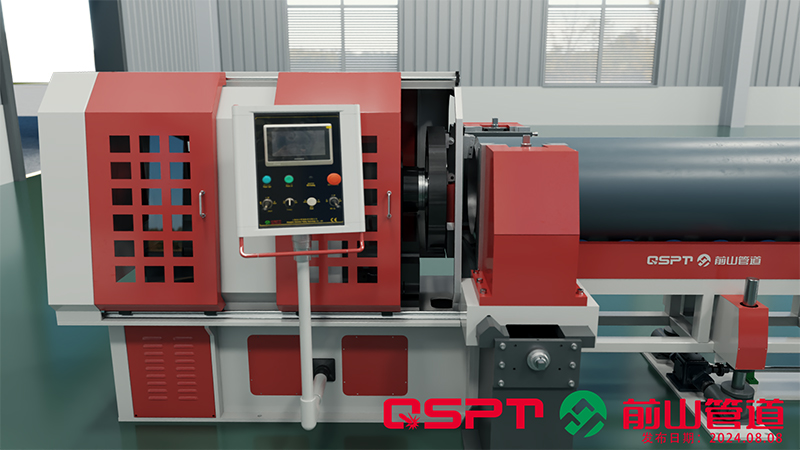

large diameter pipe CNC beveling system
  • Modular Carrier Type
  • Modular Carrier Type

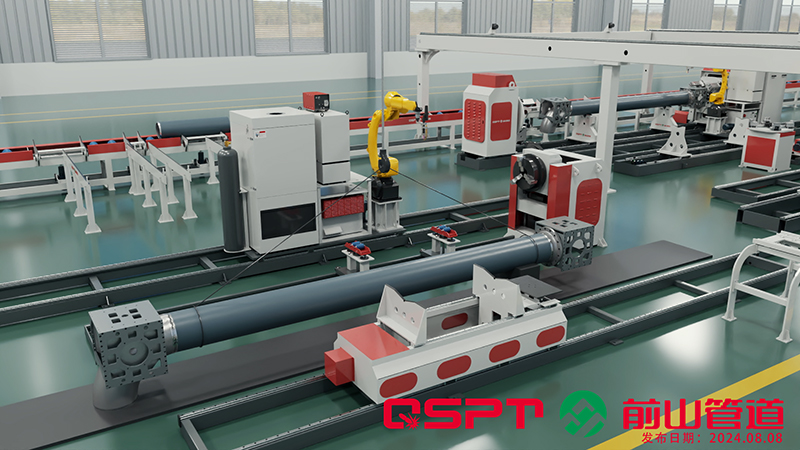

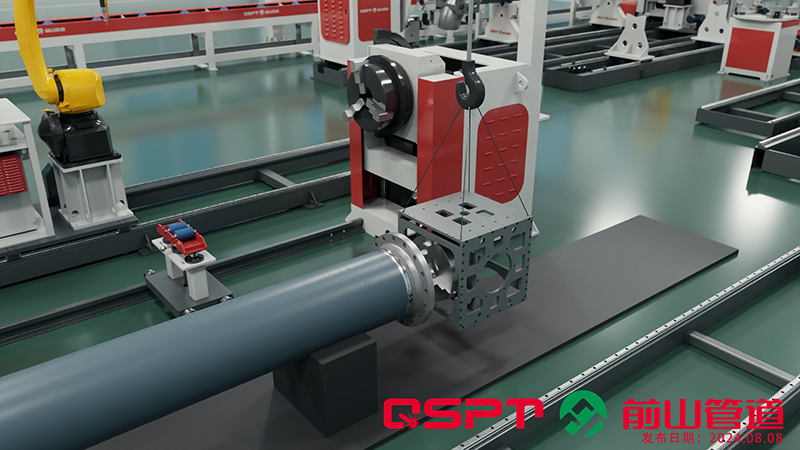

automatic large diameter pipe welding system
  • Modular Carrier Type
  • Modular Carrier Type

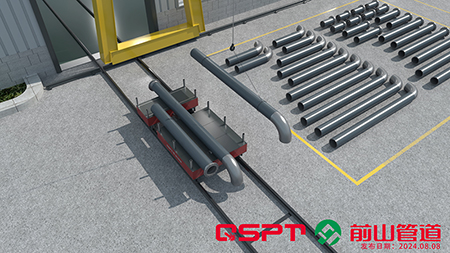

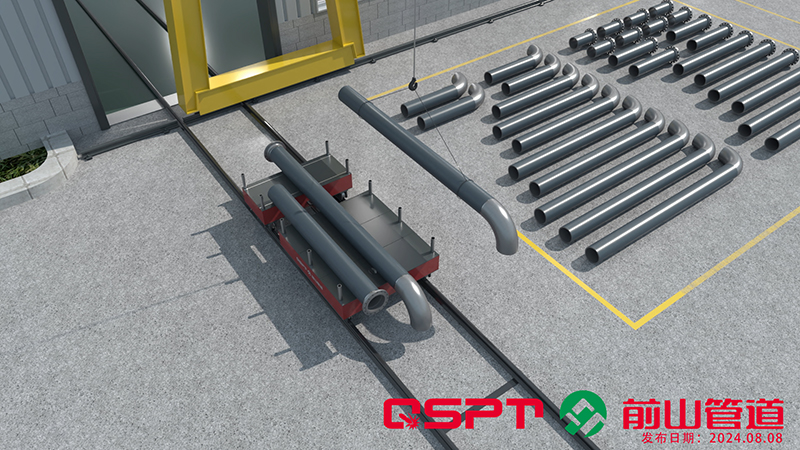

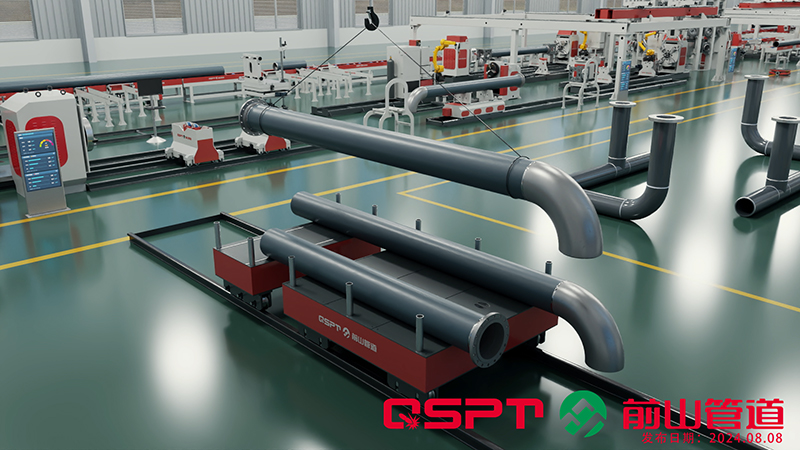

remote control RGV transfer cart for pipe spools
  • Modular Carrier Type
  • Modular Carrier Type
intelligent RGV transfer cart for pipe spools
  • Modular Carrier Type
  • Modular Carrier Type
automatic demoulding system for pipe spools
  • Modular Carrier Type
  • Modular Carrier Type

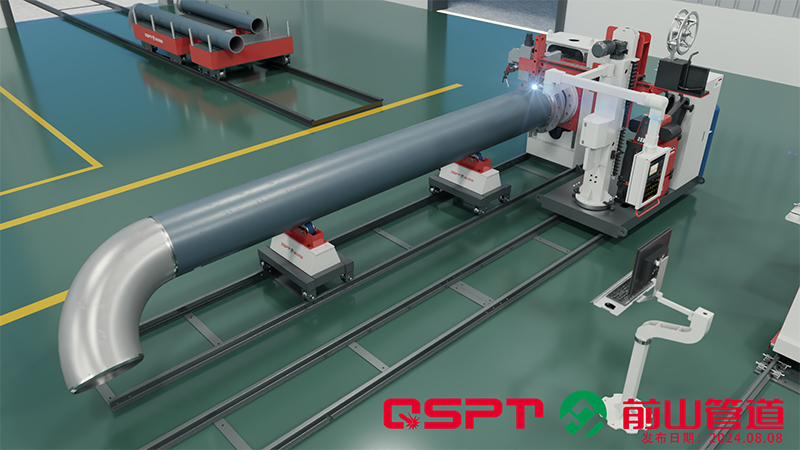

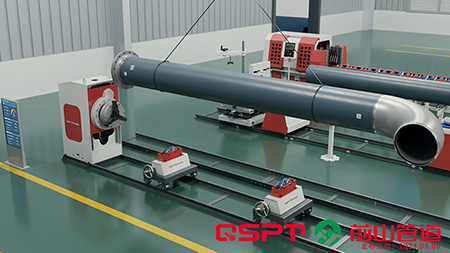

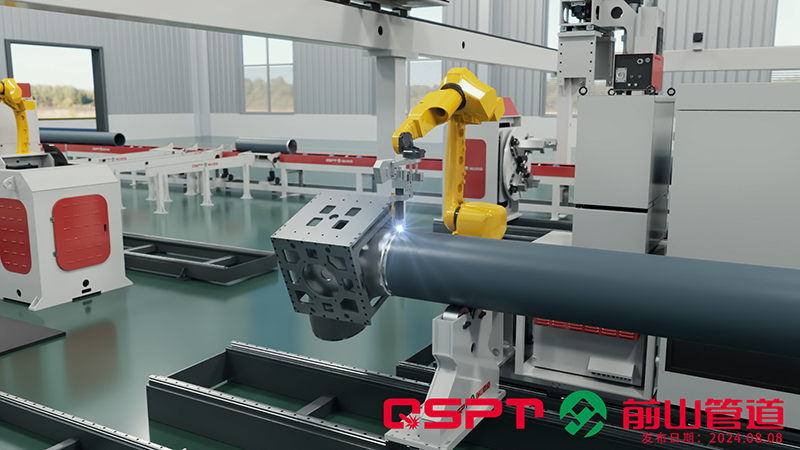

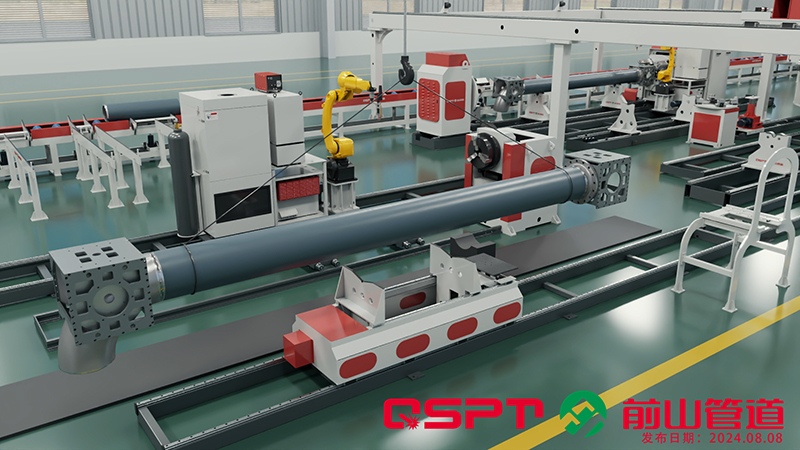

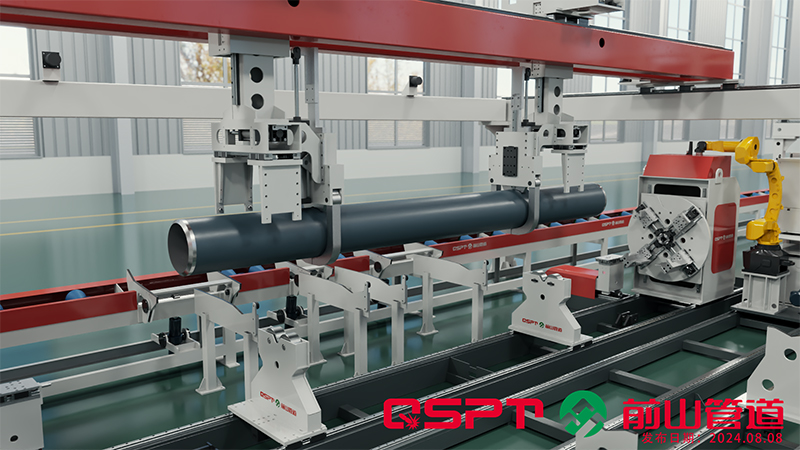

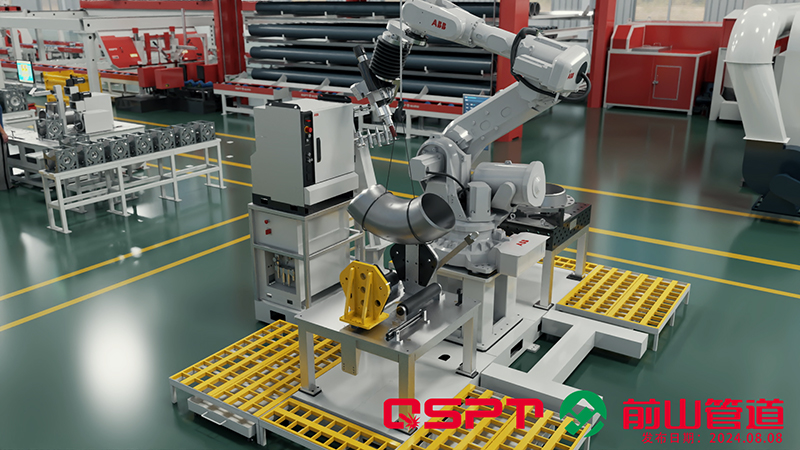

automatic pipe spool welding system
  • Modular Carrier Type
  • Modular Carrier Type

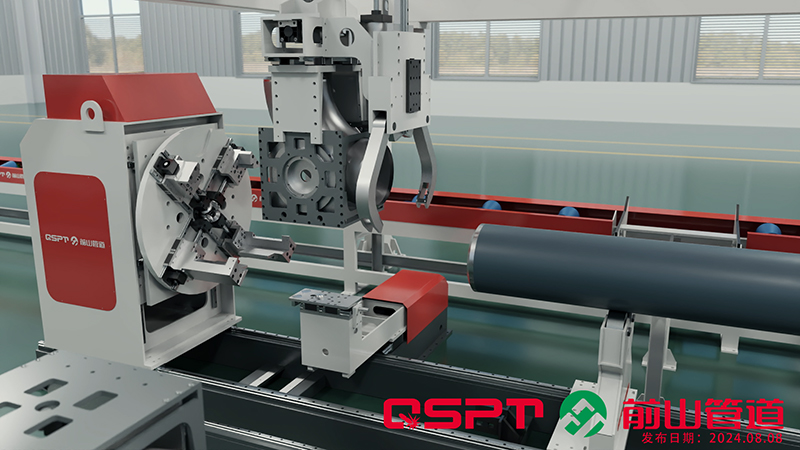

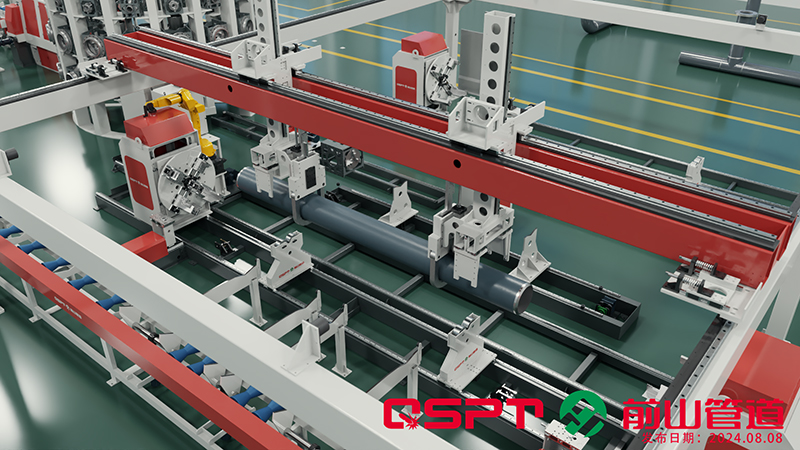

automatic fit-up and root pass welding system for pipe spools (right)
  • Modular Carrier Type
  • Modular Carrier Type
automatic fit-up and root pass welding system for pipe spools (left)
  • Modular Carrier Type
  • Modular Carrier Type

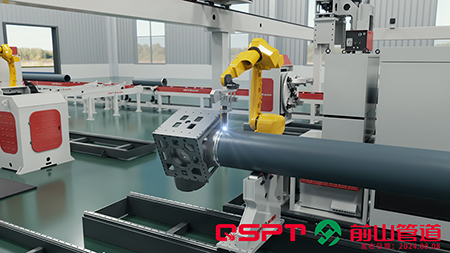

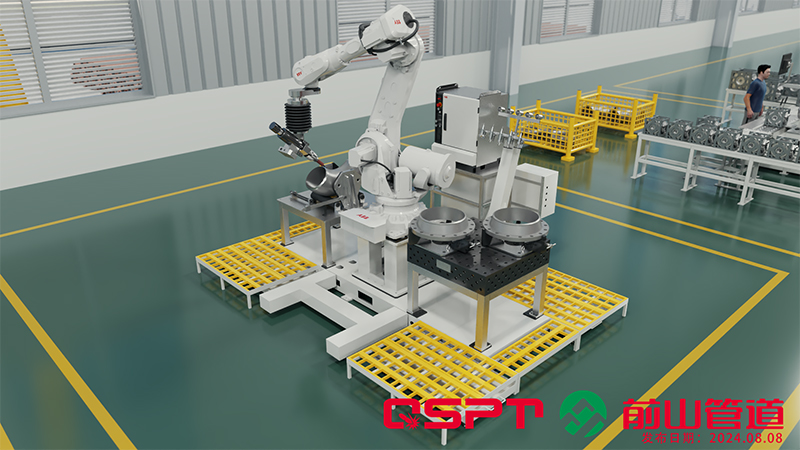

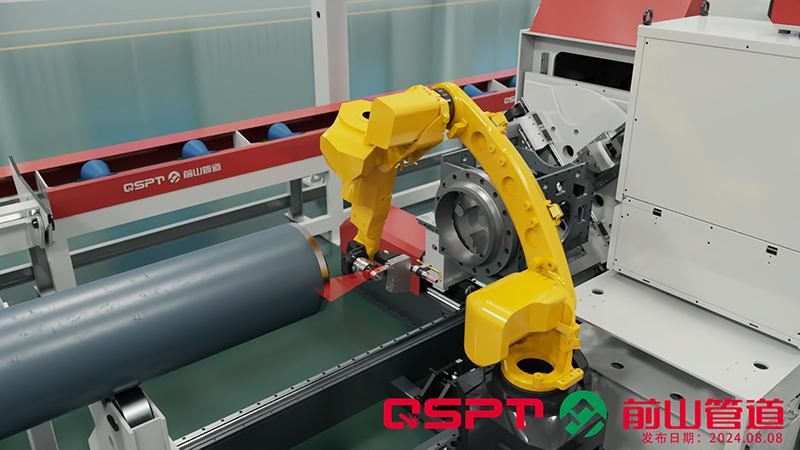

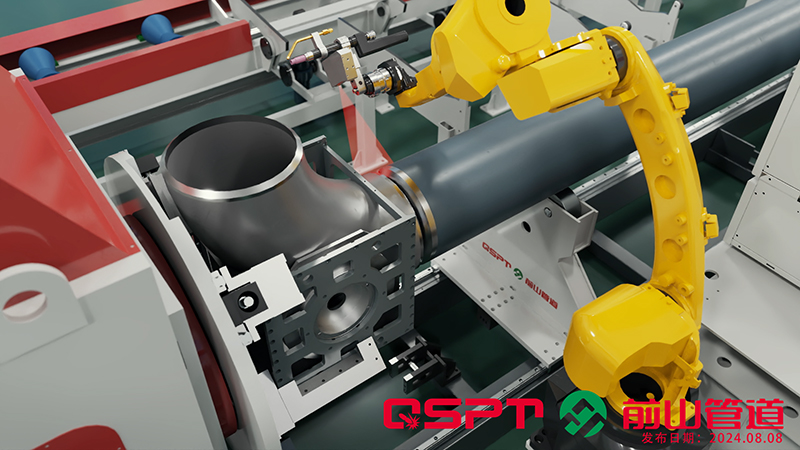

robotic grinding system for pipe bevel
  • Modular Carrier Type
  • Modular Carrier Type

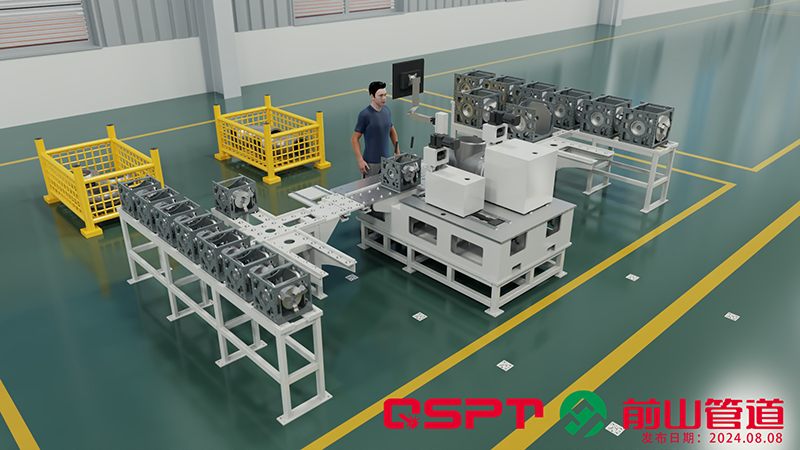

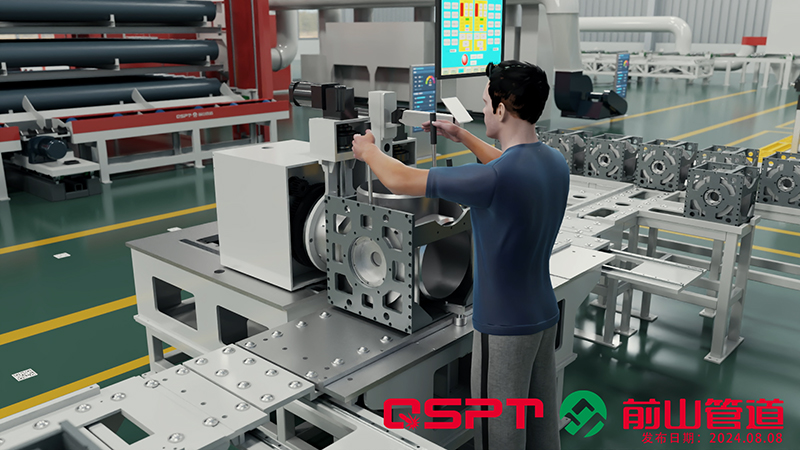

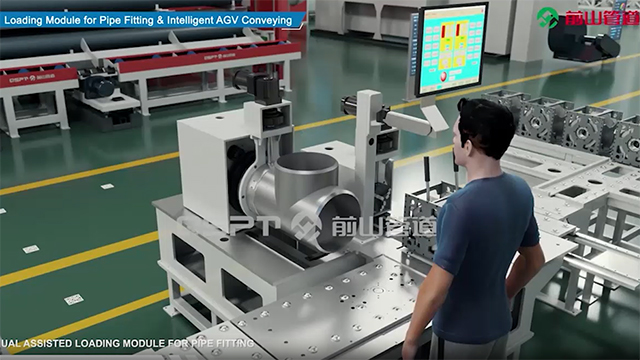

pipe bevel manual loading system
  • Modular Carrier Type
  • Modular Carrier Type

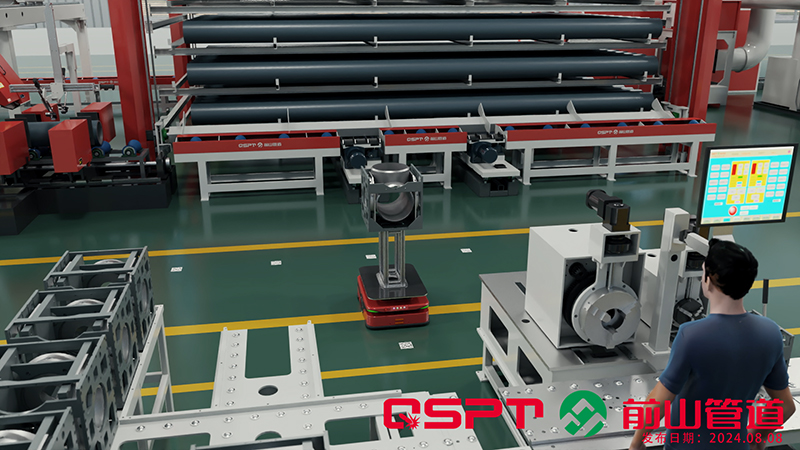

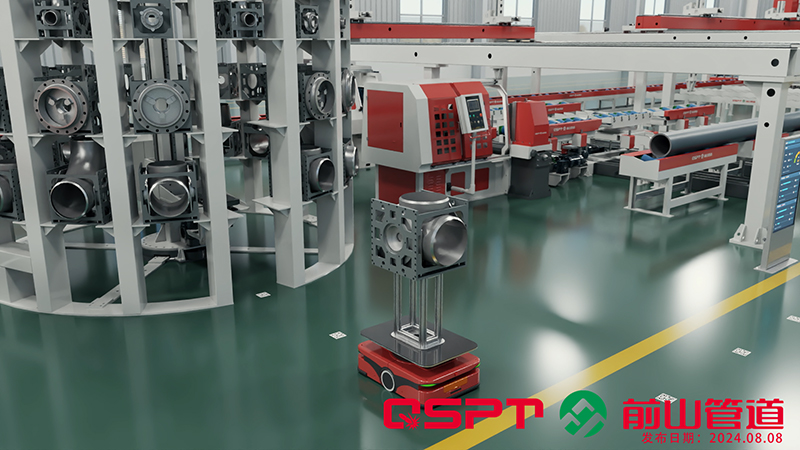

intelligent AGV transfer cart for pipe fittings
  • Modular Carrier Type
  • Modular Carrier Type

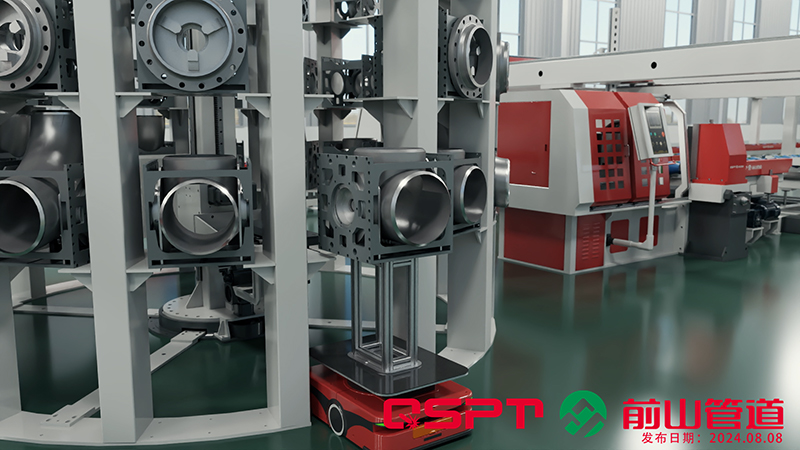

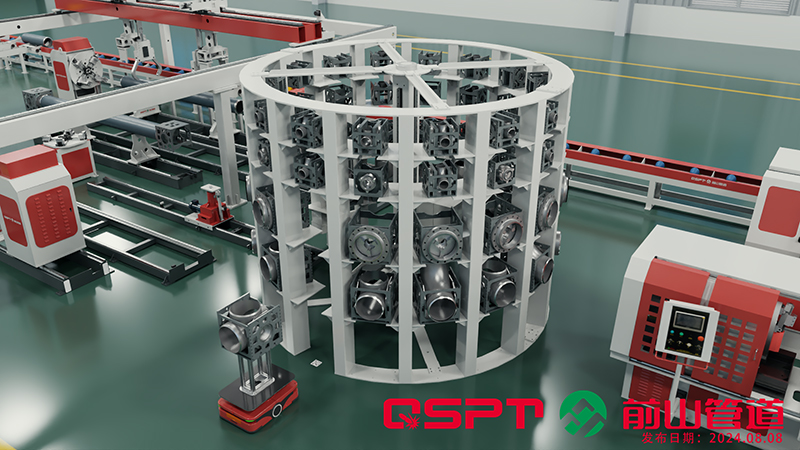

automatic vertical storage system for pipe fittings
  • Modular Carrier Type
  • Modular Carrier Type
automatic 90-degree pipe rotation system
  • Modular Carrier Type
  • Modular Carrier Type

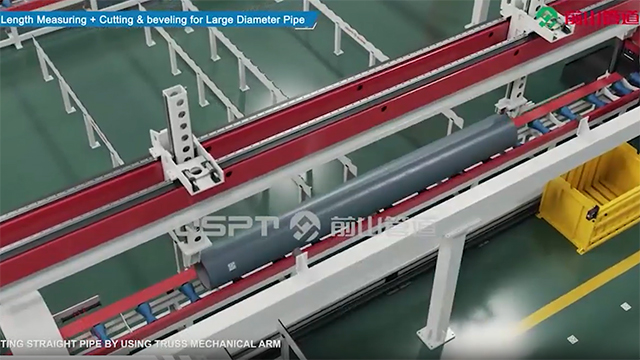

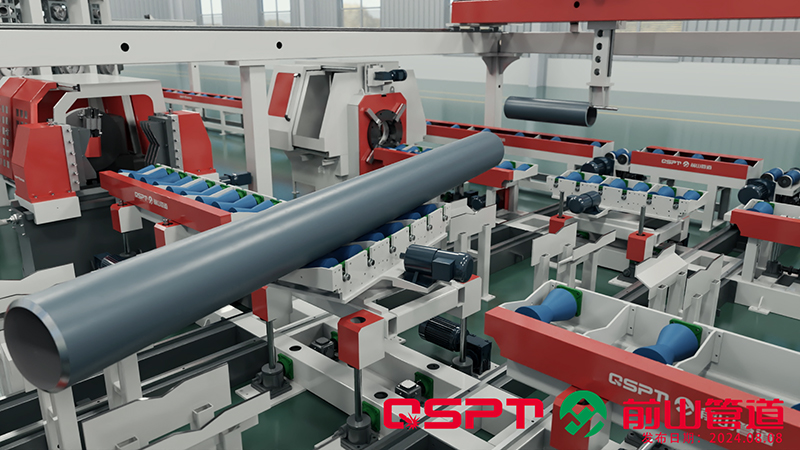

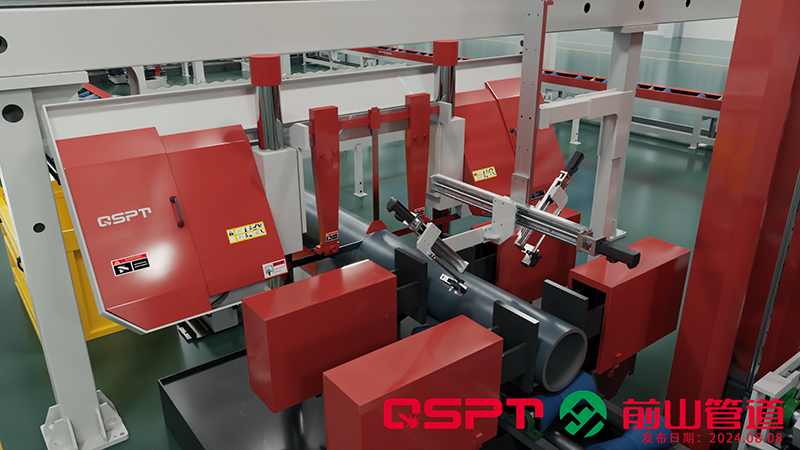

automatic pipe cut-to-length system
  • Modular Carrier Type
  • Modular Carrier Type
robotic pipe lifting system for pipe sections
  • Modular Carrier Type
  • Modular Carrier Type

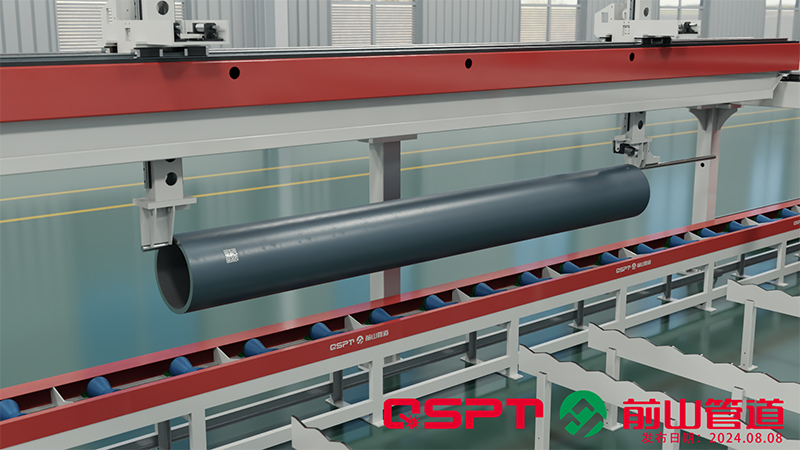

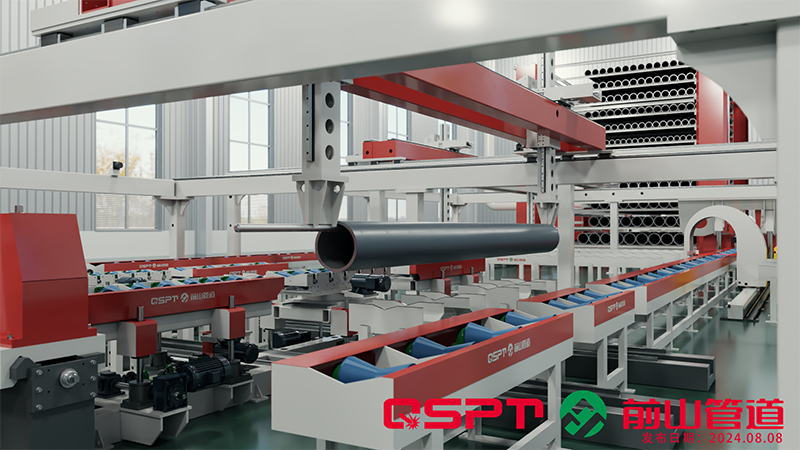

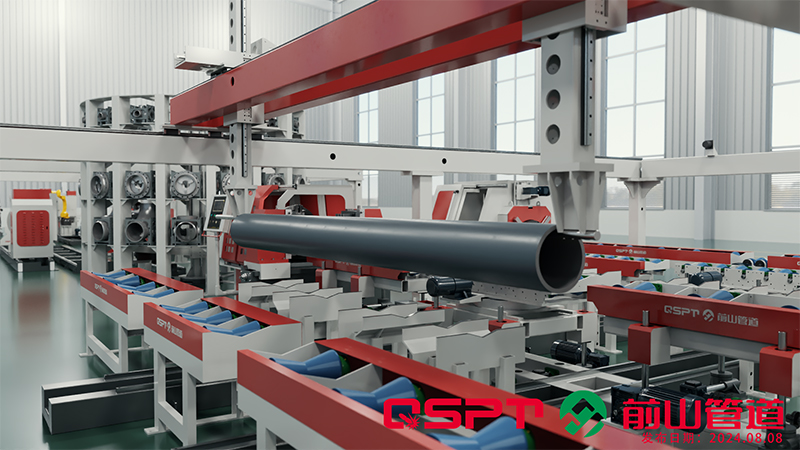

automatic pipe lifting manipulator for straight pipes
  • Modular Carrier Type
  • Modular Carrier Type

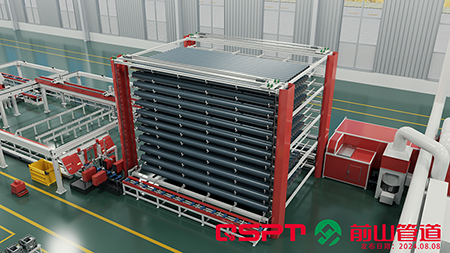

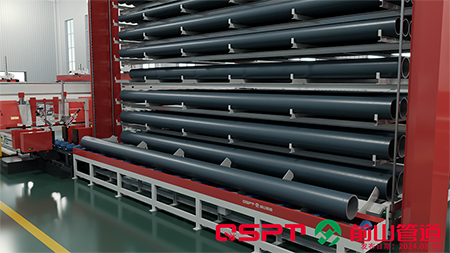

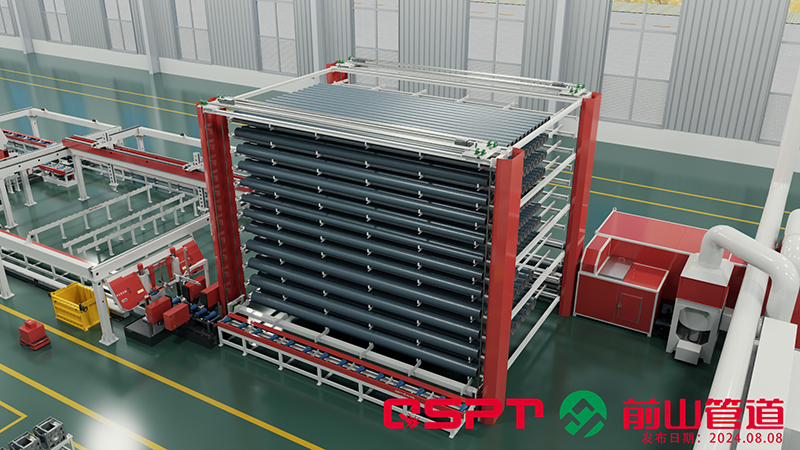

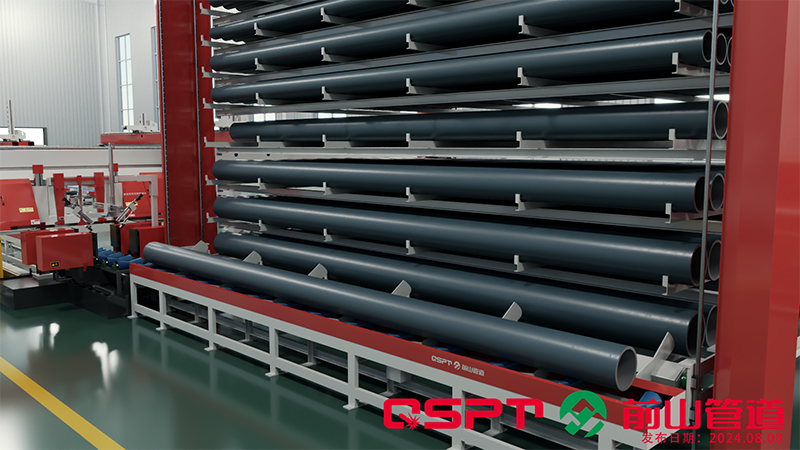

automatic vertical storage system for pipes
  • Modular Carrier Type
  • Modular Carrier Type

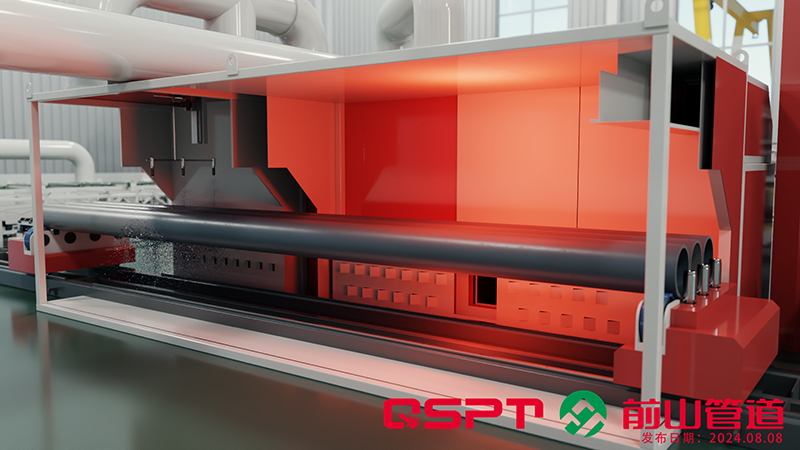

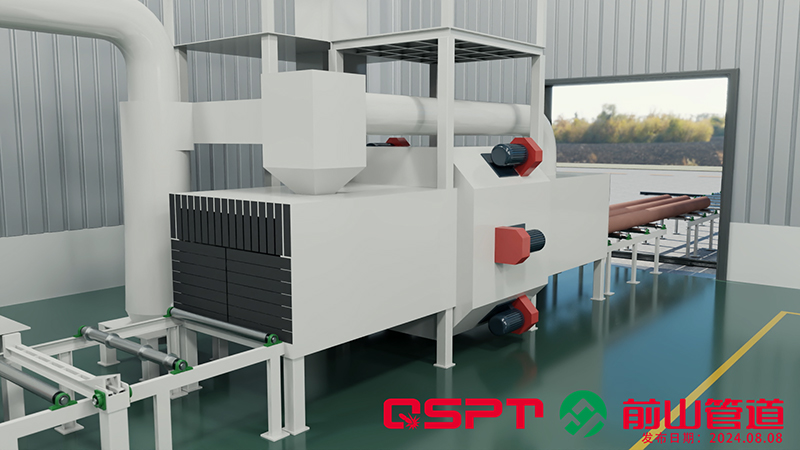

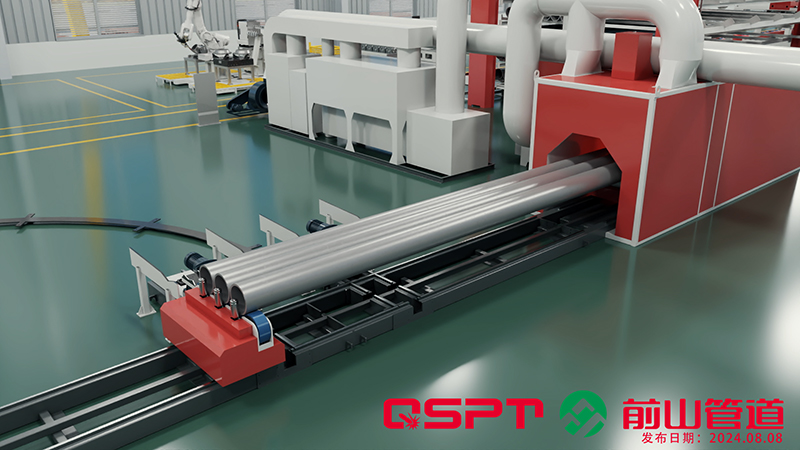

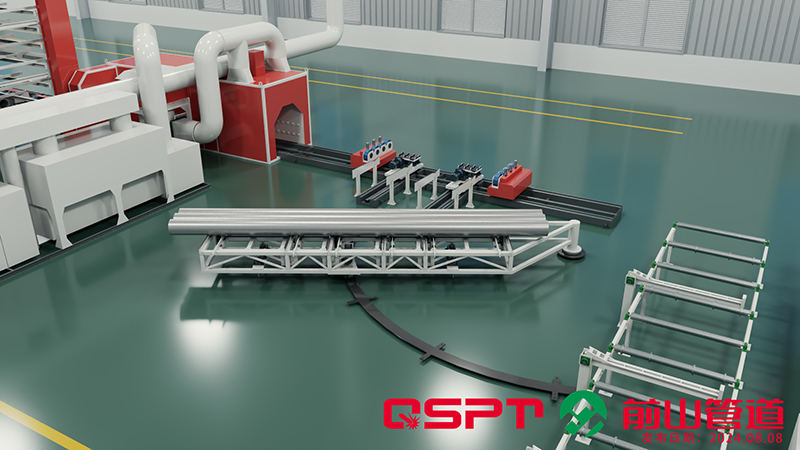

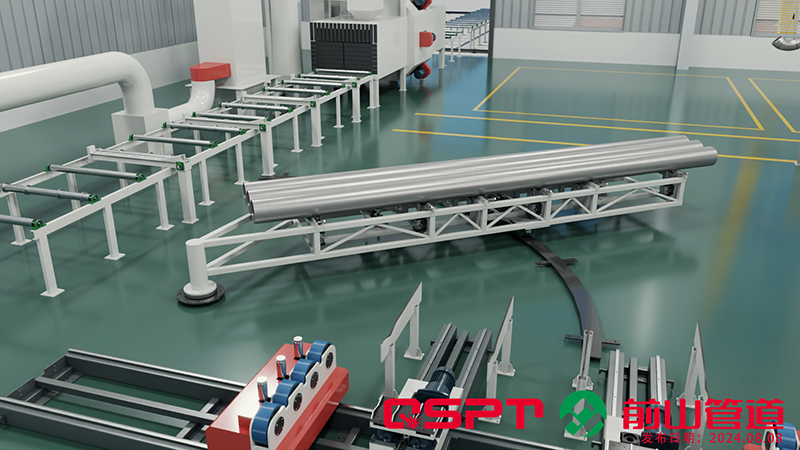

automatic shot blasting and rust removal system for pipes
  • Modular Carrier Type
  • Modular Carrier Type

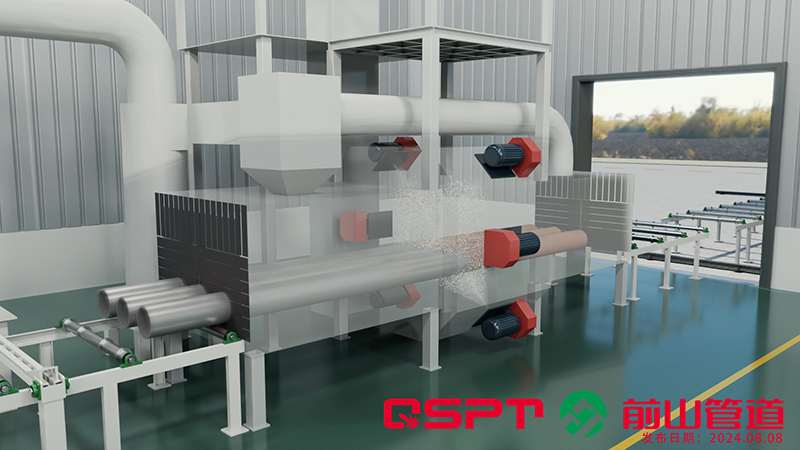

automatic spraying and drying system for pipes
  • Modular Carrier Type
  • Modular Carrier Type

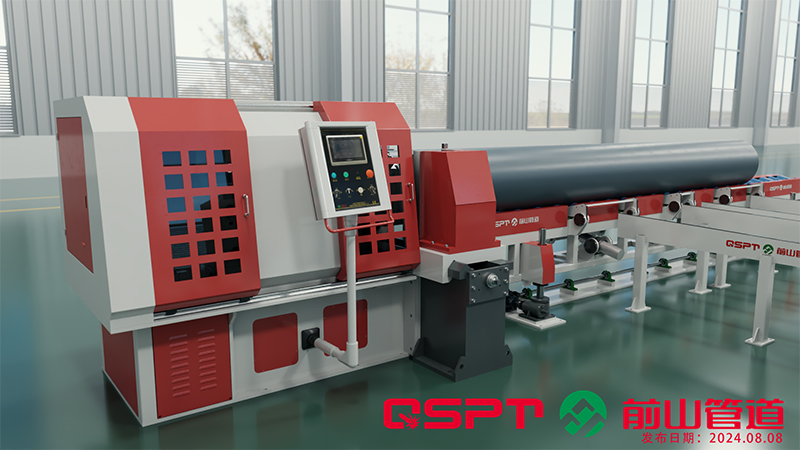

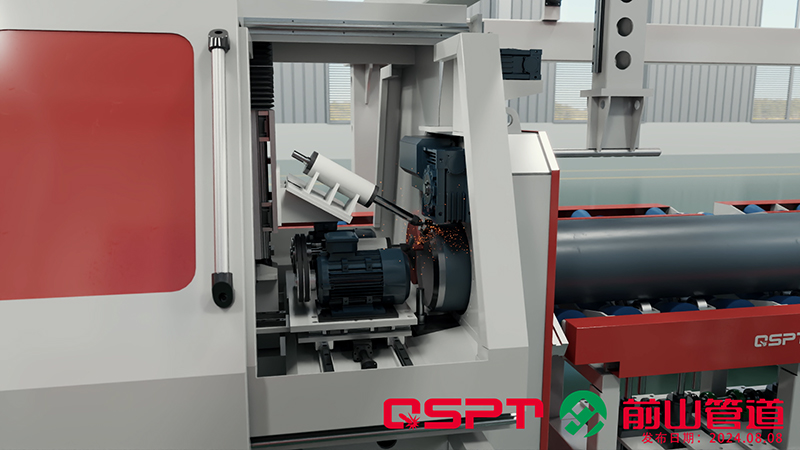

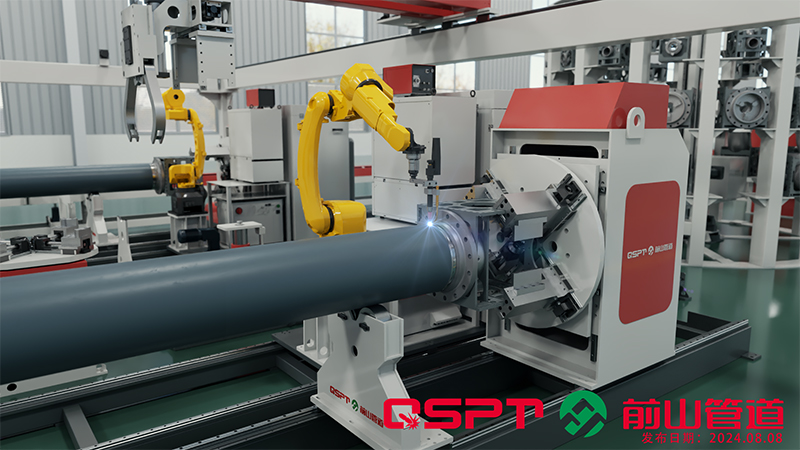

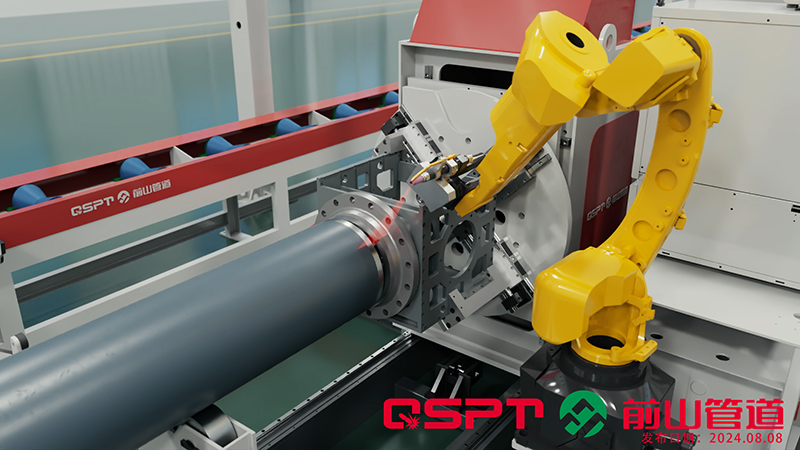

automatic beveling machine for straight pipes
  • Modular Carrier Type
  • Modular Carrier Type
